Wastewater Treatment Emission Control.

Sewage odor is often the number one complaint related to wastewater treatment and waterworks facilities which is mainly due to hydrogen sulfide gas.

Using Chemteq filter’s replacement indicator on the outlet of filter or carbon absorber alerts the user when filter or carbon absorber is saturated .

Our filter replacement indicators, not only ensures the health and well being of the wastewater treatment staff.  But also ensures that residents around the plant are breathing odor free air.

Filter change Indicators for drum type filters

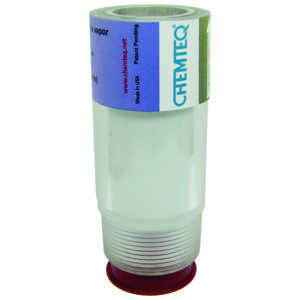

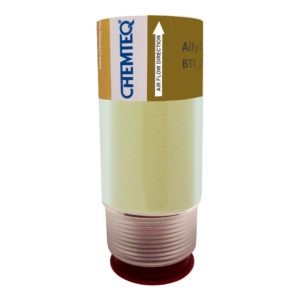

We make filter change indicators BTI  for ammonia, hydrogen sulfide and mercaptans.

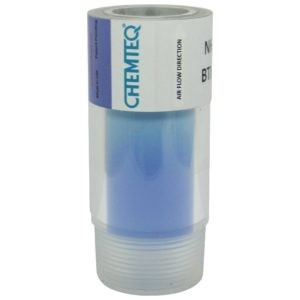

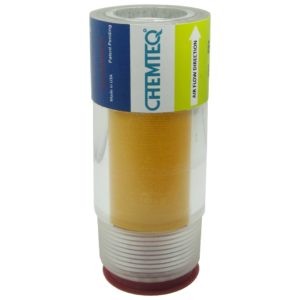

BTI2  for ammonia, hydrogen sulfide and mercaptans,  BTI3   for ammonia, hydrogen sulfide and mercaptans.

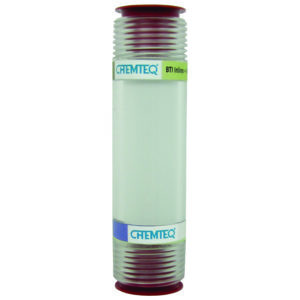

Breakthrough indicators inline inlet BTI inline for ammonia, hydrogen sulfide and mercaptans.

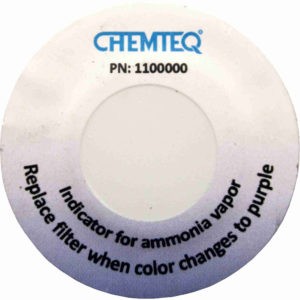

Filter change indicator stickers for manhole filters

Sewer manhole filter change indicator for hydrogen sulfide. Filters end of service life indicators for hydrogen sulfide.

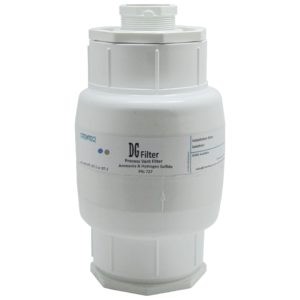

We also make three different sizes of filters with end of service life indicators for hydrogen sulfide and ammonia.

Custom cut colorimetric indicators are available for wide range of chemicals including hydrogen sulfide.

Our indicators have shelf life range between one year and two years, plus service life range between one year and two years.

Sunlight has no effect on the hydrogen sulfide indicators, and they are waterproof. Available in one side and two side indicators and you can observe color change from both sides

Products Features:

1.       Filter Change Indicators

a

Diameter and thread

BTI: 1”. Inlet thread 0.75” MNPT

BTI-Inline: 1”. Inlet & 0utlet thread 0.75” MNPT

BTI-AFT*: 1”

BTI2: 2”. Inlet thread 1.5” MNPT

BTI3: 3”. Inlet thread 2.5” MNPT

b

Hight

BTI: 3.5”

BTI-Inline: 3.5”

BTI-AFT*: 5.1”

BTI2: 4.5”

BTI3: 4.5”

c

Temperatures range:

-20 – 4oC to 50 – 65oC (-4 – 39oF to 122 -149oF).

d

humidity range:

5% RH to 95%RH

f

Shelf life range:

1-2 years

g

Service life range:

1-2 years

h

Allowable media:

Gases and vapors

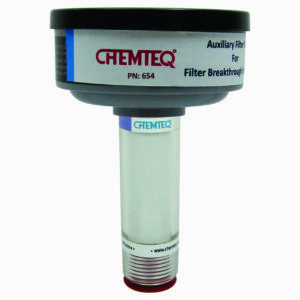

Filter change indicator with extra filter trap

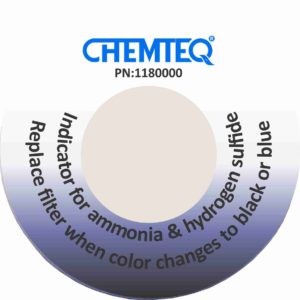

2.  Filter Change Indicator Stickers

a

Diameter

Area Monitors**: 1.5”

BTIS: 1.25”

BTIS-B***: 1.5”

b

Thickness

Area Monitors: 0.12”

BTIS: 0.12”

BTIS-B***: 0.12”

c

Temperatures range:

-20 – 4oC to 50 – 65oC (-4 – 39oF to 122 -149oF).

d

Humidity range:

5% RH to 95%RH

f

Shelf life range:

1-2 years

g

Service life range:

1-2 years

h

Allowable media:

Gases and vapors

** Monitoring air quality. Suitable locations, on stack, duct, vent, or flue

*** Leak detectors suitable for chemical cabinets and chemical transport trucks.

OSHA

Ammonia PEL

Hydrogen Sulfide PEL

Mercaptans PEL

Wastewater Treatment Emission Control

Sewer manhole filter change indicator

Hydrogen Sulfide

Sewer manhole filter change indicator

 Mercaptans

Wastewater Treatment Emission Control. Chemteq supply filter replacement indicators for hydrogen sulfide ammonia and mercaptans

a

Part numbers:

148-0000,

b

Weight:

0.4g (0.02oz)

c

Dimensions:

38.1mm (1.5in) x 30mm (0.12in)

d

Temperature range:

4oC to 60oC (39oF to 140oF)

e

Humidity range:

5% RH to 95%RH

f

Minimum detectable: 1ppm•hr at 30 cc/sec face velocity

g

Color change:

Green to black

h

Color stability

1 year

I

Storage temperature:

4oC to 25oC, (39oF to 77oF)

j

Shelf life:

2 years

k

Service life:

2 years

Hydrogen Sulfide Sewer manhole filter change indicator
Wastewater Treatment Emission Control. Chemteq supply filter replacement indicators for hydrogen sulfide ammonia and mercaptans

a

Part numbers:

172-0000

b

Weight:

0.4g (0.02oz)

c

Dimensions:

38.1mm (1.5in) x 30mm (0.12in)

d

Temperature range:

4oC to 60oC (39oF to 140oF)

e

Humidity range:

5% RH to 95%RH

f

Minimum detectable limit:

1ppm•hr at 30 cc/sec face velocity

g

Color change:

Olive green to pink

h

Color stability

1 year

I

Storage temperature:

4oC to 25oC, (39oF to 77oF)

j

Shelf life:

1 year

k

Service life:

1 year

Mercaptans Sewer manhole filter change indicator
