Ammonia Vapor Breakthrough Indicator Inline
Ammonia Indicator
Item No. 617
Product Features
Minimum detectable limit: 10ppm•hr
Color Change: Light blue to purple
Inlet & outlet dimensions: ¾” Male NPT
Service life: 2 years
$77.09

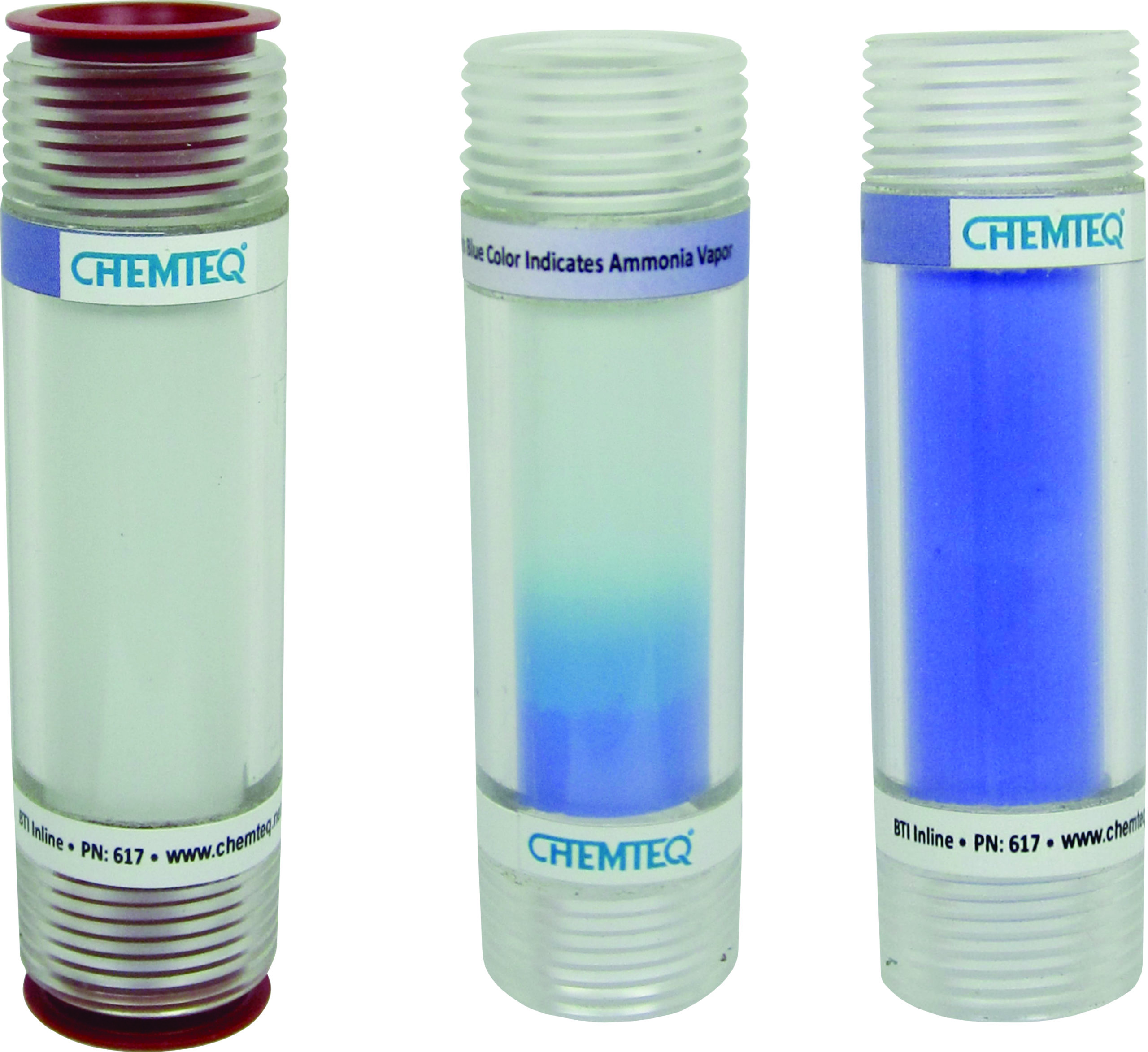

Ammonia Vapor Breakthrough Indicator-Inline is reliable and cost effect means for protection from exposure to ammonia. Easily connect inline with ¾” male, male NPT inlet and outlet. You can observe the bright vibrant color change from all directions.
PN 617
Product Specifications
|
a |
Weight: | 28g (1.0oz) |
|
b |
Dimensions: |
89.9mm (3.5in), diameter 24.5mm (1.0in) |
|
c |
Inlet and outlet dimensions: |
¾” MNPT |
|
d |
Operating temperature: | -20oC to 65oC (-4oF to 149oF) |
|
e |
Operating humidity: |
5% RH to 95%RH |
|
f |
Minimum detectable limit: |
10ppm•hr at 30 cm/sec face velocity |
|
g |
Color change: |
Light blue to purple |
|
h |
Storage temperature: | 4oC to 25oC, (39oF to 77oF) |
|
i |
Shelf life: | 2 years at 4oC to 25oC, (39oF to 77oF) |
|
j |
Service life: | 2 years |
Refill Kit
THE AMMONIA BTI INLINE CAN BE REUSED BY REPLACING THE EXHAUSTED AMMONIA INDICATOR WITH FRESH AMMONIA INDICATOR ASSEMBLY.
Ammonia BTI Inline Refill Kit Item No.617-5000 Includes:
1- One Ammonia Indicator Assembly (Item No. 617-1600)
2- Two Porous Plugs (Item No. 617-1400)
Miniature-Hook Pick (Item No. 431-9100) Optional
Please call us (1-855-243-6837) or email us
