2600 Series DG Filters

2600 Series DG Filters with ESLI are efficient filters with real-time end-of-service life indicators. Most suited for chemical processes

2600 Series DG Filters with end-of-service life indicators (ESLI) are efficient and reliable filters. Maximum sorption of gases and vapors because of the special blend sorbent media for. Easy refilling of consumed sorption media, so they are convenient to use.
The ESLI changes color when the filter is about 75% to 80% consumed, allowing 20 to 25% of sorption media as safety buffer
For use in chemical processes and reactor vents.
The filters are cost effective easy to refill with fresh sorbent media.
Available for wide variety of applications

Filter Specification:

A Length: 11”
b Diameter: 5.7”
c Operating temperature: -20oC to 55oC (-4oF to 131oF)
d Operating humidity: 5% RH to 85%RH
e Inlet and outlet: 0.75” or 1.5” female NPT*
f Sorption media: Up to 5 lb.
g Allowable fluid: Gases and vapors
h Optimum air flow: Static to 500cc/min
i End-of-service life indicator (ESLI) Filters are equipped with corresponding ESLI

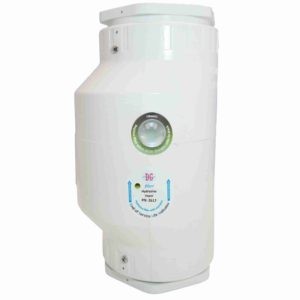

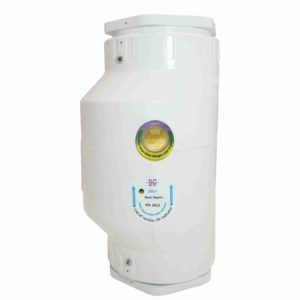

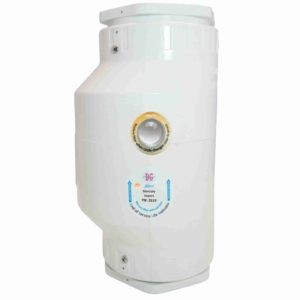

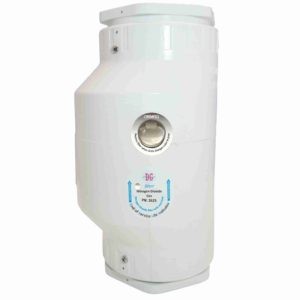

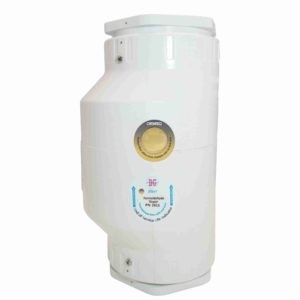

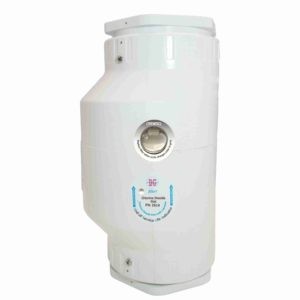

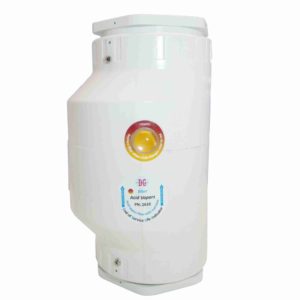

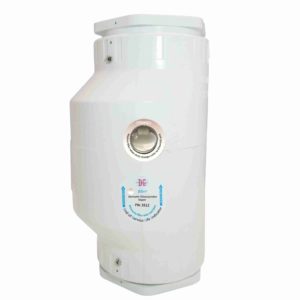

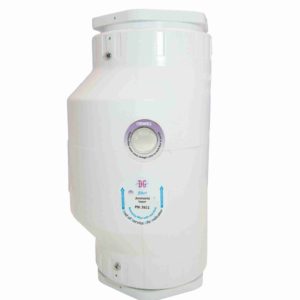

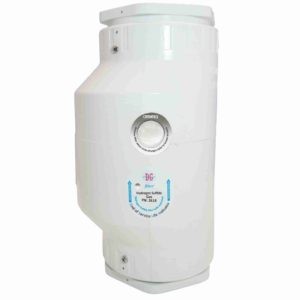

2600 Series DG Filters with End-of-Service Life Indicators

Brochure
Refilling Instructions

The Chemteq DG Filters 2600 Series with end-of-service life indicators
Length = 11”, diameter = 5.7”, Inlet & outlet = ¾”, 1” or 1.5” female NPT
Up to 5 lb. of special blends sorption media.
