From August 29th to September 20th our shipping lead time will be 14 business days.
Hydrogen Sulfide DG FILTER-ESLI-2618. Filter with end of service life indicator for chemical processes and reactor vents.

Hydrogen Sulfide DG FILTER-ESLI-2618

Filters with End-of-Services Life Indicator (ESLI)

Item No. 2618

Filter Dimensions: 8 cm (11”) x 16.5 cm (6.5”)
Weight: 4.4 kg (10 lb.)
Sorption Media Weight: 〜 2.3 kg (5 lb.)
Fluids Allowed: Gases and Vapors
Air flow: Static to 500 cc/min

$867.30

Hydrogen Sulfide DG FILTER-ESLI-2618

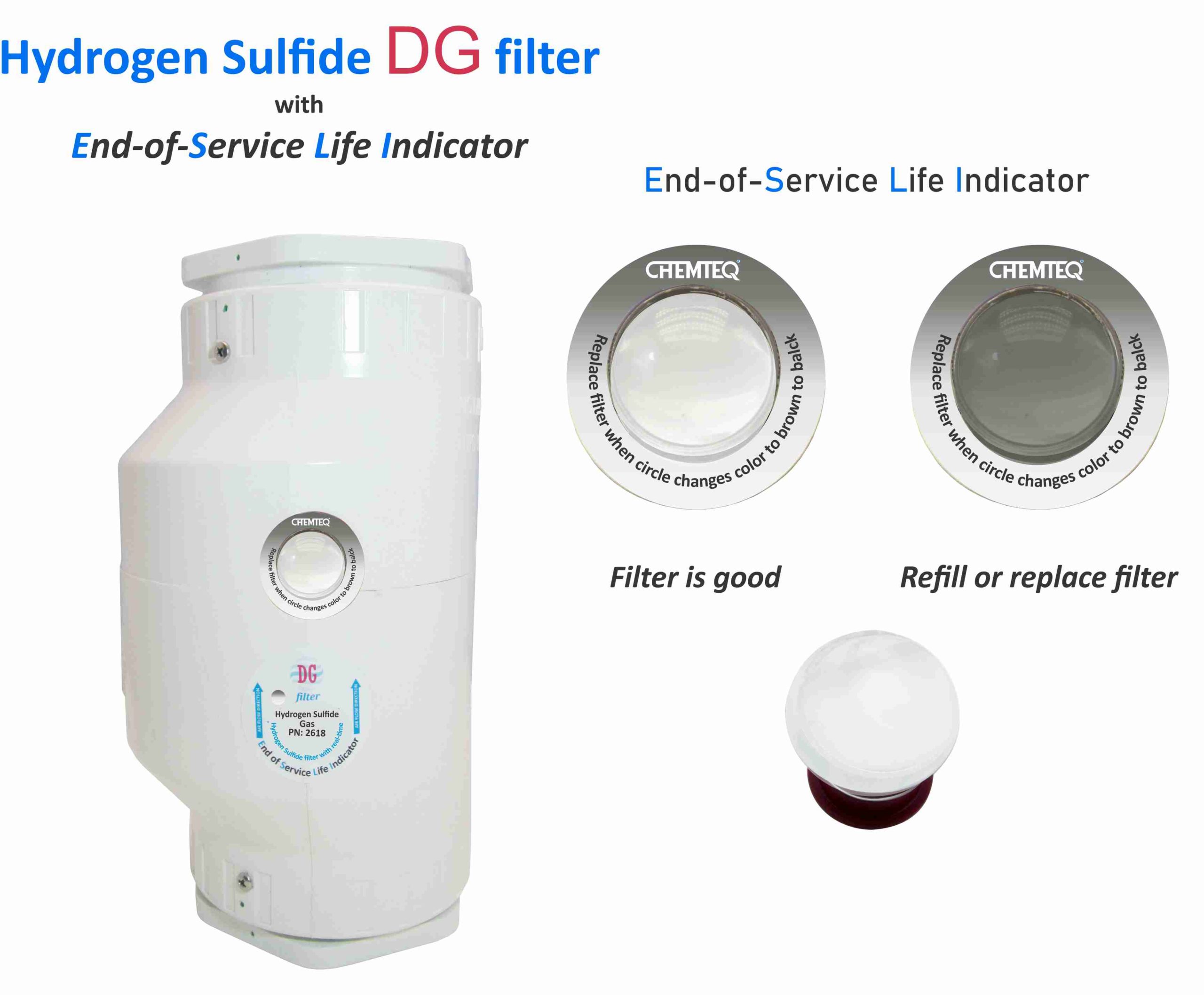

The DG Filters with end-of-service life indicators (ESLI) are efficient and reliable filters most suited for chemical processes and reactor vents. They are easy to refill and to replace the ESLI. The ESLI allows the user to safely use filter without the possibility of toxic gases and vapors breakthrough to the surrounding environment. The ESLI changes color when the filter is about 75% to 80% consumed, allowing 20 to 25% of sorption media as safety buffer.

Filter Specifications:
Length = 11”, diameter = 5.7”, Inlet & outlet = 1.5” female NPT
Up to 5 lb. of special blends sorption media

Suitable for Chemical Processes and Reactors Vents
Easy refilling of consumed sorption media
Easy replacement of consumed ESLI

ESLI Specifications:

a Weight: 5g (0.18oz)
b Dimensions: 21.6mm (0.85in), diameter: 25mm (1in)
c Operating temperature: -20oC to 55oC (-4oF to 131oF)
d Operating humidity: 5% RH to 85%RH
e Minimum detectable limit: 1ppm•min at 30 cm/sec face velocity
f Color change: Light blue to black
g Storage temperature: 4oC to 25oC, (39oF to 77oF)
h Shelf life: 2 years at 4oC to 25oC, (39oF to 77oF)
i Threading: 0.75”-20 UNEF-2A male *

* UNEF = Unified National Imperial Screw Thread

Hydrogen Sulfide DG FILTER-ESLI-2618
