Ammonia & Hydrogen Sulfide Filter Breakthrough Indicator
Ammonia and Hydrogen-Sulfide Filter Change Indicator
Item No. 192
Product Features
Minimum detectable limit: 10ppm•hr ammonia, 1ppm•min hydrogen sulfide
Color Change: Light blue to purple or black
Inlet dimensions: ¾” Male NPT
Service life: 2 years
$76.44

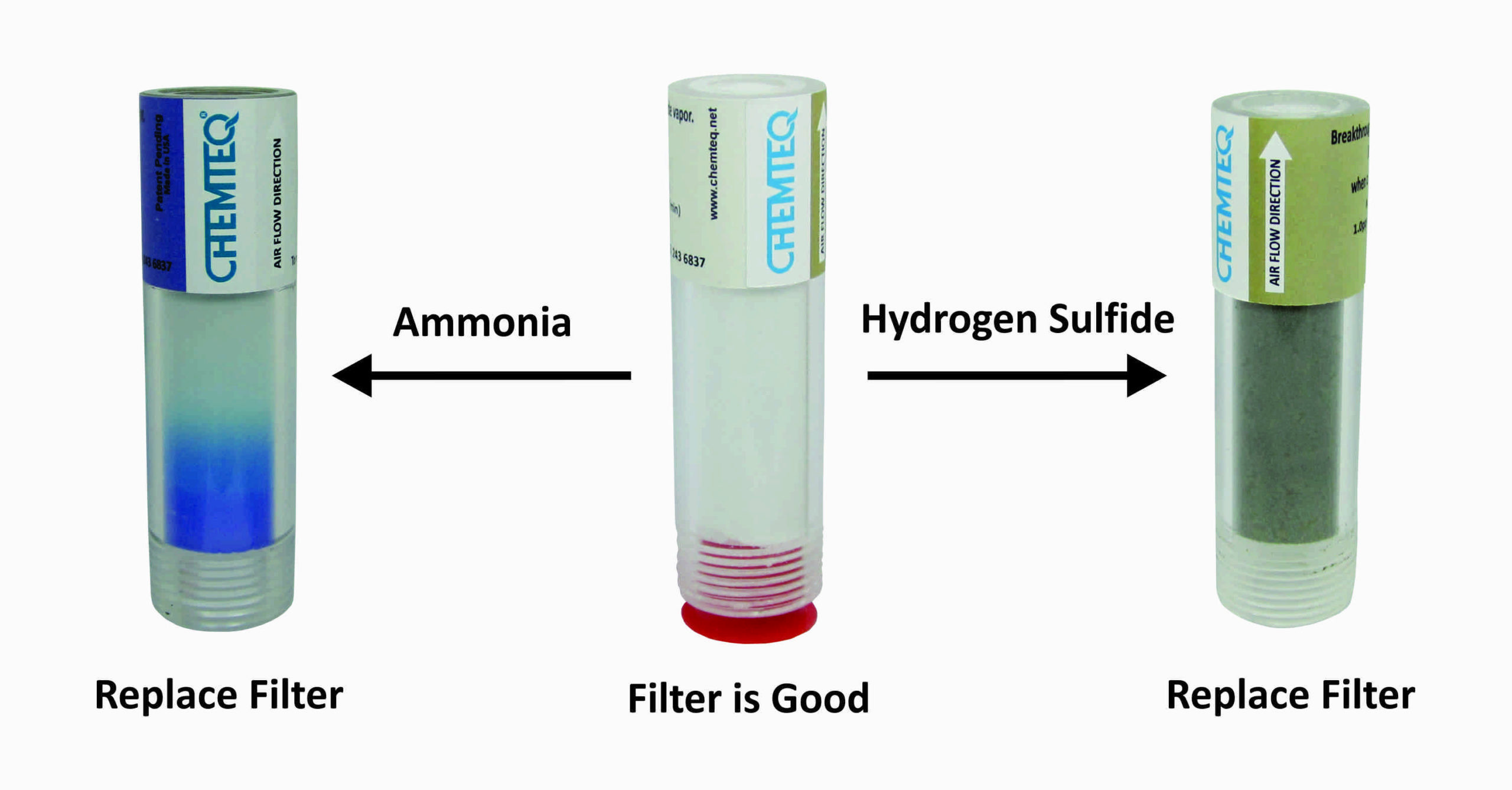

Ammonia & Hydrogen-Sulfide Filter-Change-Indicator. Colorimetric indicator that indicates the saturation and exhaustion of filters. It is reliable and cost effect means for protection from exposure to ammonia & hydrogen sulfide. The indicator changes color from off white to pink or brown when filter is saturated with ammonia & hydrogen sulfide.
Connect the indicator to the ¾ inch female NPT outlet of filter using the ¾ inch male NPT threading at the bottom of the indicator. Observe bright vibrant color change from all directions.
PN 192
Product Specifications
|
a |
Weight: | 28g (1.0oz) |
|
b |
Dimensions: | 89.9mm (3.5in), diameter 24.5mm (1.0in) |
|
c |
Inlet dimensions: | ¾” MNPT |
|
d |
Operating temperature: | -20oC to 65oC (-4oF to 149oF) |
|
e |
Operating humidity: | 5% RH to 95%RH |
|
f |
Minimum detectable limit: | 10ppm•hr for ammonia and or 1ppm•min for hydrogen sulfide at 30 cm/sec face velocity |
|
g |
Color change: | Light blue to purple or black |
|
h |
Storage temperature: | 4oC to 25oC, (39oF to 77oF) |
|
i |
Shelf life: | 2 years at 4oC to 25oC, (39oF to 77oF) |
|
j |
Service life: | 2 years |
