Hydrogen Sulfide Breakthrough Indicator Waterproof (BTI2-WP)
Filter Change Indicator
Item No. 416
dimensions:
Length = 114.3mm (4.5”)
Diameter = 50.8mm (2.0”)
Inlet = 1.5” Male NPT
Hydrogen Sulfide Breakthrough Indicator 2-WP is reusable. Refill Kit Part Number: 416-5000
$120.12

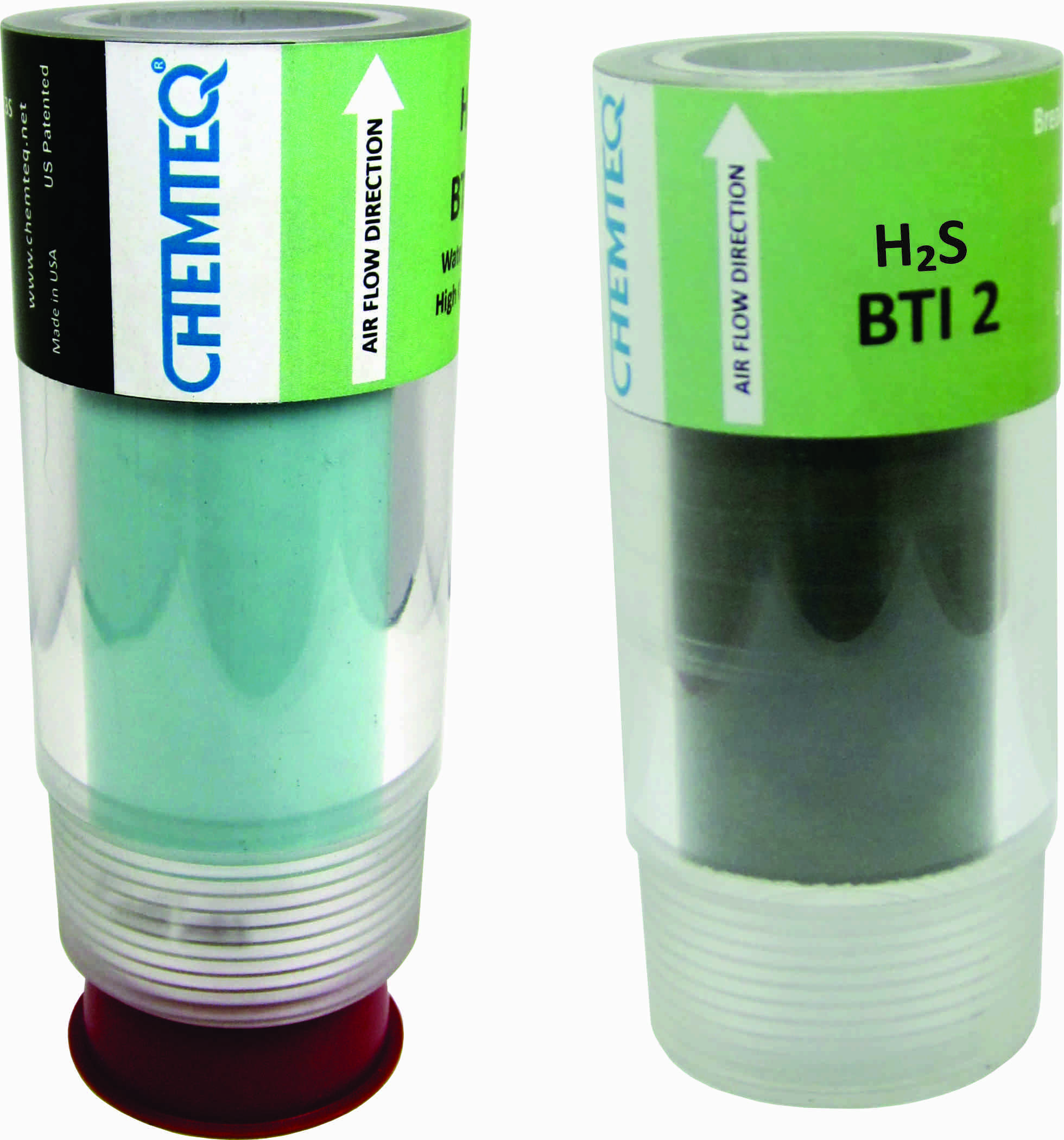

Hydrogen Sulfide Breakthrough Indicator Waterproof (BTI2-WP). Indicates the saturation filters. Waterproof indicator. Reliable and cost effect. Easily connect to the 1½ inch female NPT outlet of filter using the 1½ inch male NPT threading at the bottom of the indicator. It is sensitive to targeted gases or vapors. The indicator is 4.5-inch-tall, 2-inch diameter and you can observe the bright vibrant color change from all directions.
Hydrogen Sulfide Breakthrough Indicator 2-WP is reusable. Refill Kit Part Number: 416-5000
PN 416
Product Specifications
| a | Weight: | 129.5g (4.6oz) |
| b | Dimensions: | 11.43cm (4.5in), diameter 5.08cm (2.0in) |
| c | Inlet dimensions: | 1.5″ MNPT |
| d | Operating temperature: | -20oC to 55oC (-4oF to 131oF) |
| e | Operating humidity: | 5% RH to 85%RH |
| f | Minimum detectable limit: | 1ppm•min at 30 cm/sec face velocity |
| g | Color change: | Green to black |
| h | Storage temperature: | 4oC to 25oC, (39oF to 77oF) |
| i | Shelf life: | 2 years at 4oC to 25oC, (39oF to 77oF) |
| j | Service life: | 2 years |
