Ammonia and hydrogen sulfide DG-FILTER-727. Most suited for reactor vents. Special blend sorbent media. Use with BTI or BTI2

Ammonia and hydrogen sulfide DG-FILTER-727

Filters for Chemical Processes and Reactors Vents

Item No. 727

Ammonia and hydrogen sulfide DG-FILTER-727

Dimensions:
Length = 16”, diameter = 9.4”, Inlet & outlet = ¾” to 2.5” female NPT

Description:
Up to 5 lb. of special blends sorption media
Easy refilling of consumed sorption media
Optional use of filter change indicators for ammonia & hydrogen sulfide BTI (PN: 192) or ammonia & hydrogen sulfide BTI 2 (PN: 402) depending on the selected filter outlet. Sold separately.

$571.98

Ammonia and hydrogen sulfide DG-FILTER-727 is an efficient and reliable filter.  Most suited for chemical processes and reactor vents. Special blend sorbent media for maximum sorption of acid gases and vapors. Easy refilling of consumed sorption media. For best results, use with corresponding filter change indicators, BTI or BTI2.  Filter change indicator alters user in real time to replace filter. BTI and BTI2 are sold separate.

Filter Specifications:

A Length: 11”
b Diameter: 5.7”
c Operating temperature: -20oC to 55oC (-4oF to 131oF)
d Operating humidity: 5% RH to 85%RH
e Inlet and outlet: 0.75” or 1.5” female NPT*
f Sorption media: Up to 5 lb.
g Allowable fluid: Gases and vapors
h Optimum air flow: Static to 500cc/min
i Recommendation Use filter with BTI (3.5”x 1”, 0.75” NPT) or BTI2 (4.5”x 2”, 1.5” NPT). sold separately

* NPT = National pipe thread

Suitable for Chemical Processes and Reactors Vents
Easy refilling of consumed sorption media

Ammonia and hydrogen sulfide DG-FILTER-727

Useful Link
NIOSH

Related Products

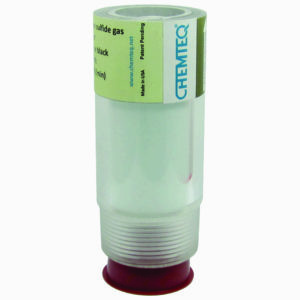

Ductless hood filter change indictor sticker (BTIS) for ammonia and hydrogen sulfide
