Mercury Breakthrough Indicator Sticker for Low Flow Filters (BTIS LFF)
Mercury filter Change Indicator Sticker for Low-Flow Waste Container Filter
Item No. 118
Dimensions: Diameter = 19.1mm (0.75”), Height = 2.0mm (0.11”)
(Pack of 5)
Mercury Breakthrough-Indicator Sticker BTIS LFF is filter change indicator sticker for low flow filters. Use with with open pores filter outlet plug.
How the BTIS LFF works?
When filter is consumed, toxic gases and vapors breakthrough it. The contaminated air then contacts the BTIS LFF and chemically reacts with the indicating sensor. Producing vivid color change, alerting user to change the filter.
How to use the BTIS LFF?
- Remove adhesive protective liner from the front of sticker.
- Attach to center clean area on the outlet of the filter.
- Replace filter when the BTIS LFF changes Color.
|Dimensions:||1.5mm (0.06in), diameter 19mm (0.75in)|
|Operating temperature:||4oC to 40oC (39oF to 104oF)|
|Operating humidity:||5% RH to 85%RH|
|Minimum detectable limit:||0.3mg/m3•hr at 30 cm/sec face velocity|

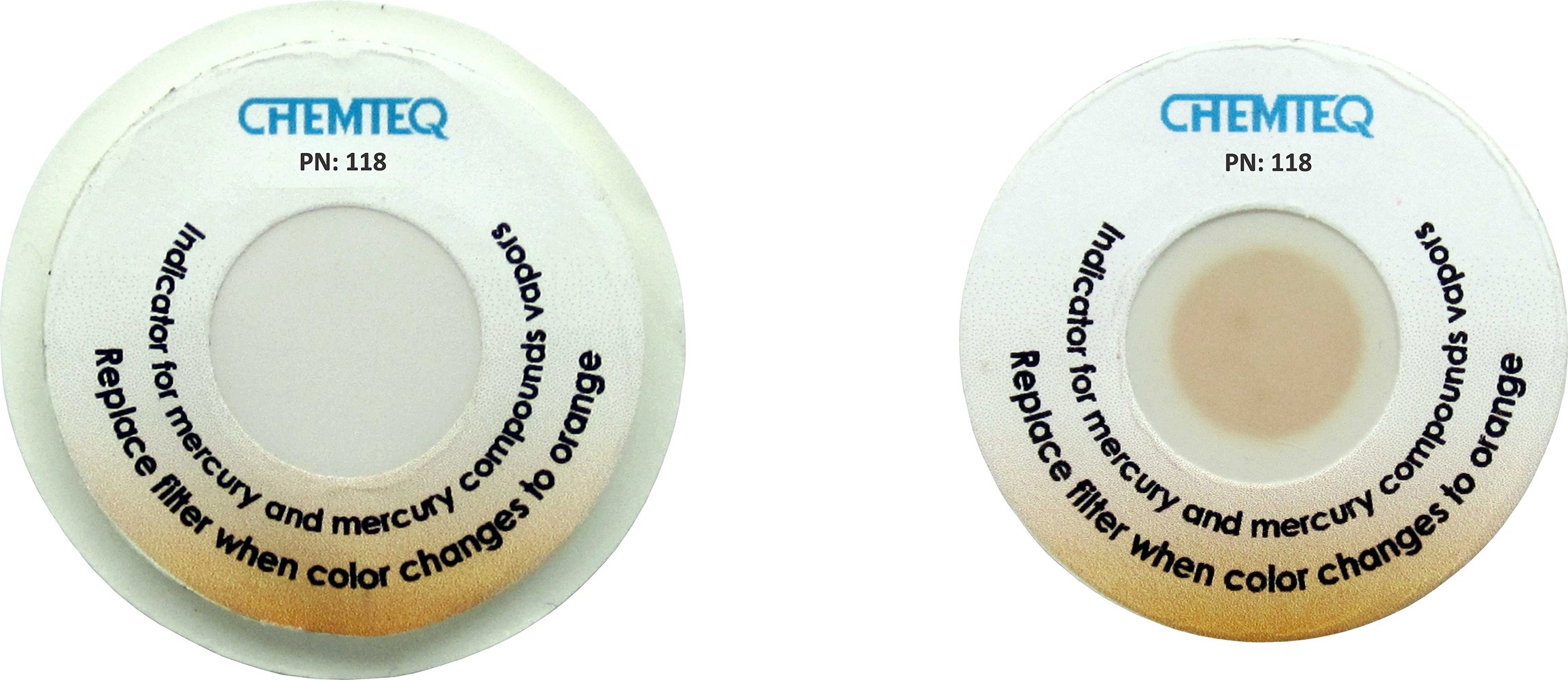

|Color change:||Off white to peach|
|Storage temperature:||4oC to 25oC, (39oF to 77oF)|
|Shelf life:||14 months at 4oC to 25oC, (39oF to 77oF)|
|Service life:||12 months|
|Maximum shipping temperature:||45oC (113oF)|
Mercury Breakthrough-Indicator Sticker BTIS LFF
