Hydrogen Sulfide breakthrough Indicator Type B leak indicators for use in chemicals transport vehicles

Hydrogen Sulfide Breakthrough Indicator Sticker Type B

Hydrogen Sulfide Leak detector for chemical transport vehicles and chemical storage cabinets (BTIS B)

Item No. 260

Dimensions: Diameter = 38.1mm (1.5in), Height = 2.0mm (0.11in)

(Pack of 5)


Hydrogen Sulfide Breakthrough-Indicator Sticker-B (BTIS B). Is a leak detector for use in chemicals transport vehicles and chemical storage cabinets. Suitable locations are the inside of glass window of chemical transport vehicle, or the inside glass window of chemical storage cabinet where representative samples can be obtained. Reliable and cost effective. Operates under extreme conditions and has extended service life.

How to use the BTIS B?

  1. Remove adhesive protective liner from the front of sticker.
  2. Attach to center clean area of the inside glass window of chemicals transport vehicle or chemical storage cabinet with the reading area (glossy surface) of the sticker facing inside glass window.
  3. Color change indicates leak.

Related Product

Hydrogen Sulfide BTI. Drum type filter change indicator Useful Link

Hydrogen Sulfide BTIS. for ductless hood and fume extractor filters.

PN 260

Product Specifications

a Weight: 0.4g (0.02oz)
b Dimensions: 2.8mm (0.11in), diameter: 38.1mm (1.5in)
c Operating temperature: -20oC to 65oC (-4oF to 149oF)
d Operating humidity: 5% RH to 90%RH
e Minimum detectable limit: 10ppm•hr. at 30 cm/sec face velocity

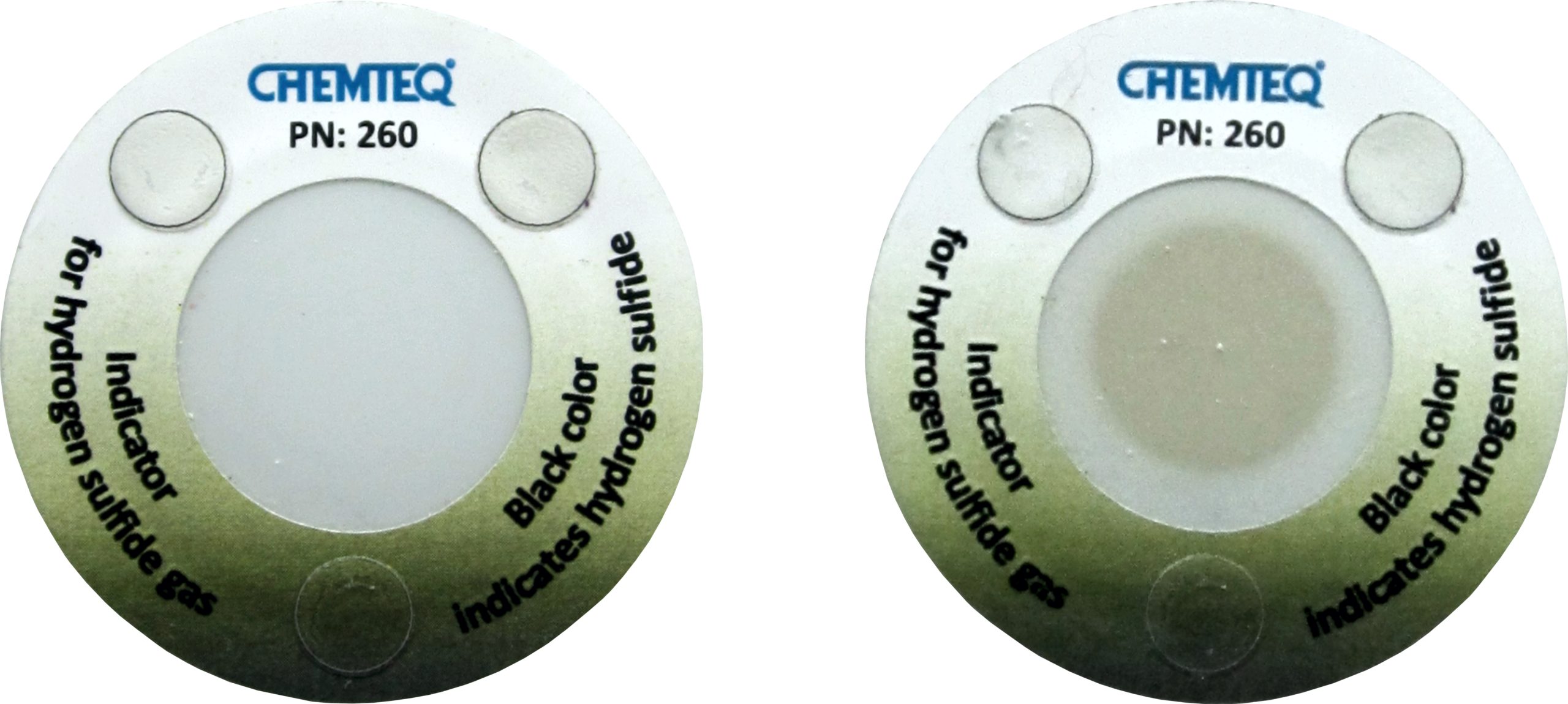

f Color change: Light blue to brown to black
g Storage temperature: 4oC to 25oC, (39oF to 77oF)
h Shelf life: 2 years at 4oC to 25oC, (39oF to 77oF)
i Service life: 4 months

Hydrogen sulfide gas causes a wide range of health effects. Workers are primarily exposed to hydrogen sulfide by breathing it. The effects depend on how much hydrogen sulfide you breathe and for how long. Exposure to high concentrations can quickly lead to death.

Hydrogen Sulfide Breakthrough-Indicator Sticker-B
