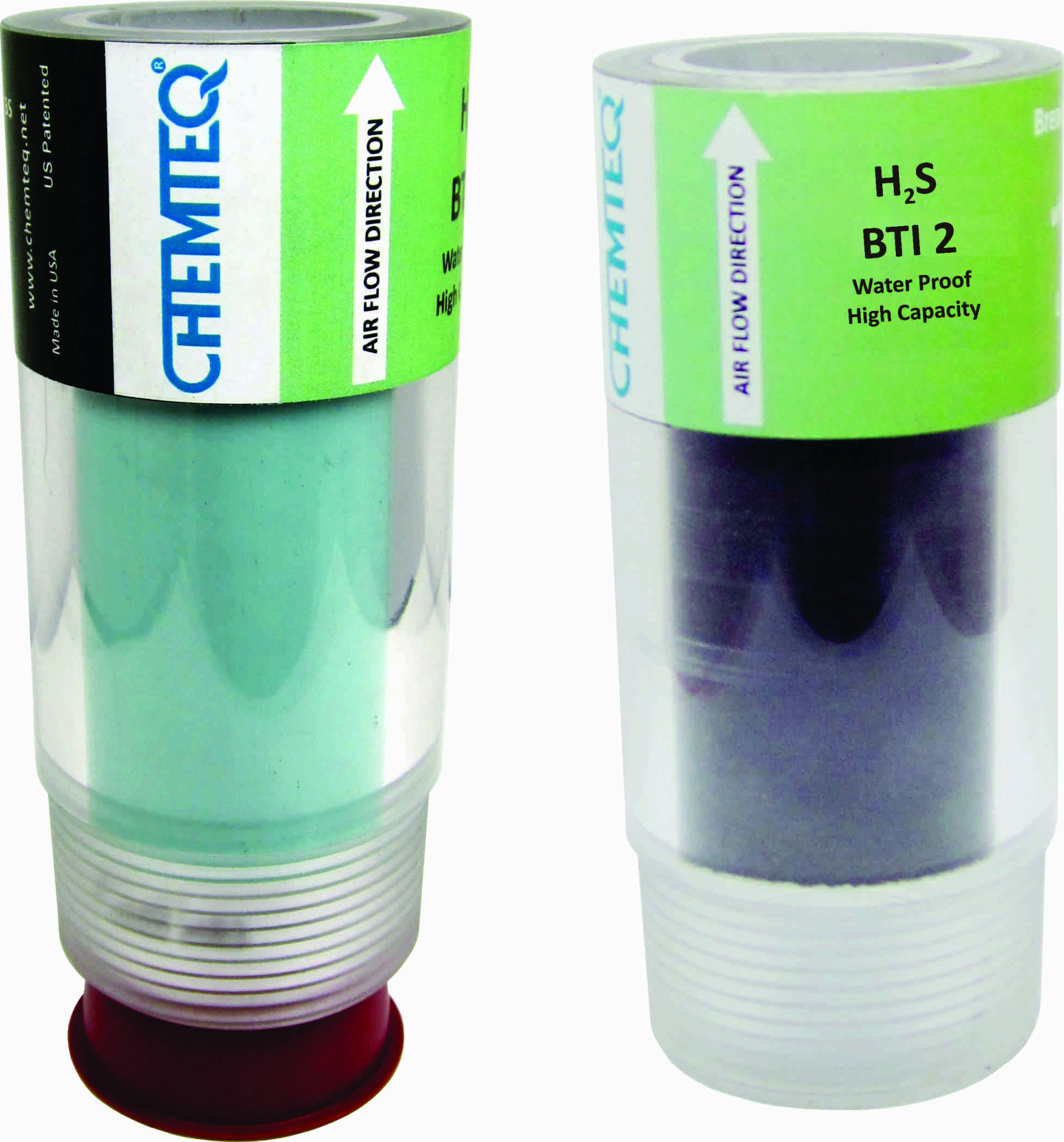

Hydrogen Sulfide Breakthrough Indicator Waterproof High Capacity (BTI 2 WP HC)
Filter Change Indicator
Item No. 417
Dimensions:
Length = 114.3mm (4.5”)
Diameter = 50.8mm (2.0”)
Inlet = 1.5” Male NPT
$130.49
Hydrogen Sulfide Breakthrough Indicator 2-WP-HC. Indicates the saturation filters. Waterproof and high capacity. Reliable and cost effect. Easily connect to the 1½ inch female NPT outlet of filter using the 1½ inch male NPT threading at the bottom of the indicator. It is sensitive to targeted gases or vapors. The indicator is 4.5-inch-tall, 2-inch diameter and you can observe the bright vibrant color change from all directions.
Hydrogen Sulfide Breakthrough Indicator 2-WP-HC is disposable.
The unique design of the indicator prevents any color change due to exposure to contaminants in the surrounding environment and changes color only when carbon absorber or filter is saturated. The indicator is waterproof and has high capacity for hydrogen sulfide.
Related Products
Hydrogen Sulfide BTIS. Filter breakthrough indicator sticker for ductless hoods
Hydrogen Sulfide Area Monitor
Useful Link
NIOSH
PN 417
Product Specifications
| a | Weight: | 175g (6.2oz) |
| b | Dimensions: | 11.43cm (4.5in), diameter 5.08cm (2.0in) |
| c | Inlet dimensions: | 1.5″ MNPT |
| d | Operating temperature: | -20oC to 55oC (-4oF to 131oF) |
| e | Operating humidity: | 5% RH to 85%RH minimum detectable: 10ppm●hr at 30 cm/sec face velocity |
| g | Color change: | Green to black |
| h | Storage temperature: | 4oC to 25oC, (39oF to 77oF) |
| i | Shelf life: | 2 years at 4oC to 25oC, (39oF to 77oF) |
| j | Service life: | 2 years |
