Hydrazines Breakthrough Indicator Inline. Real time indication of hydrazine, MIL-P-87930 and H-70. Reliable and cost effective.

Hydrazines Breakthrough Indicator Inline

Hydrazines Breakthrough Indicator Inline. Indicator for Hydrazine, MIL-P-87930 and H-70

Item No. 608

Product Features
Minimum detectable limit: 0.15ppm•hr
Color Change: Green to brown to black

Inlet & outlet dimensions: ¾” Male NPT

Service life: 2 years

Hydrazines Breakthrough Indicator Inline is reliable and cost effect means for protection from exposure to hydrazine, MIL-P-87930 and H-70

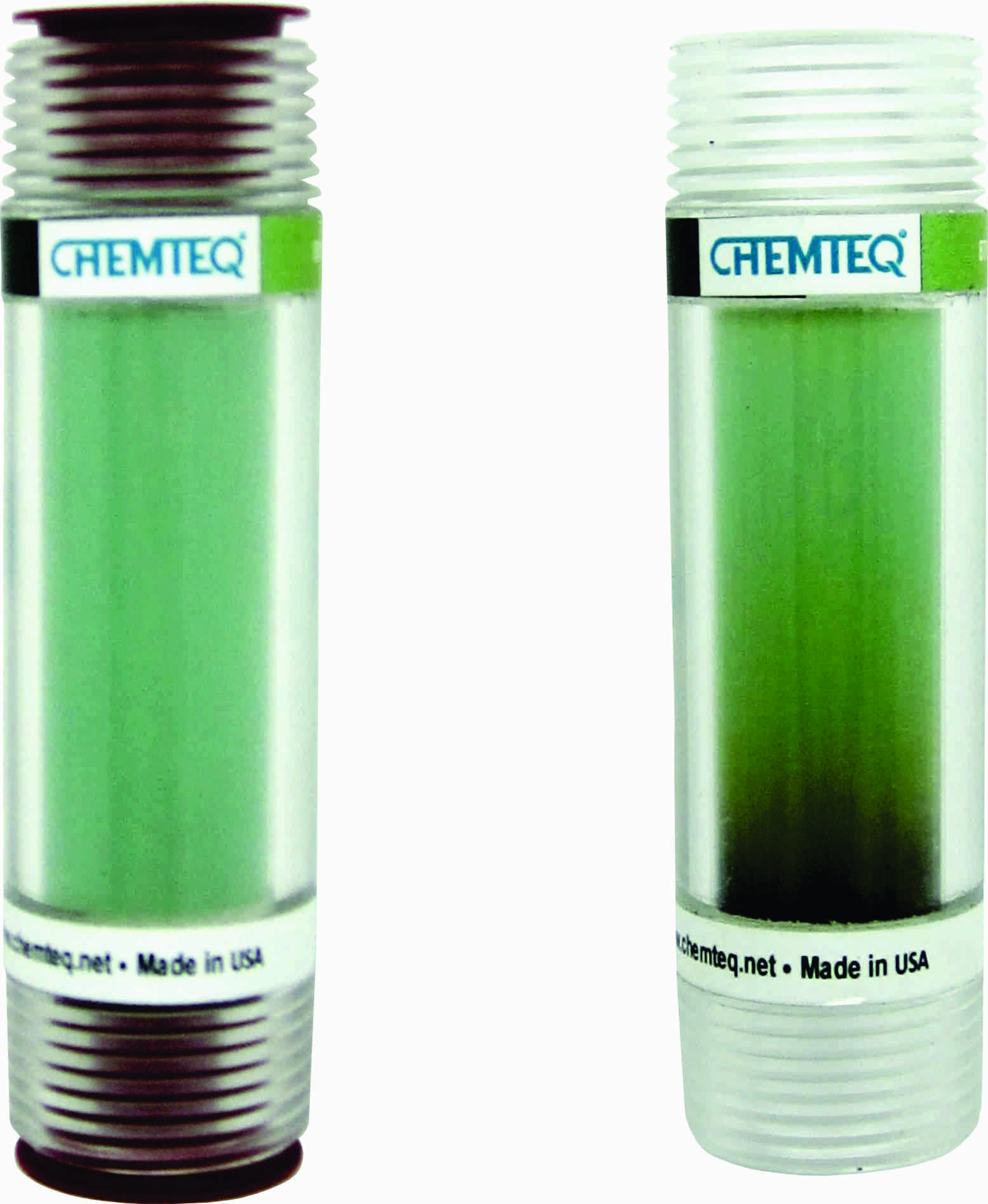

The indicator changes color from green to brown when carbon absorbers and filters are saturated with hydrazines. Hence alerting the user to replace the exhausted carbon absorber or filter. The indicator is easily connected in-line with ¾” male, male NPT inlet and outlet. It is sensitive to acid gases and vapors. You can observe the bright vibrant color change from all directions. It is waterproof and has extended service life and shelf life.

Product Specifications

a

Weight:28g (1.0oz)

b

Dimensions:

89.9mm (3.5in), diameter 24.5mm (1.0in)

c

Inlet and outlet dimensions:

¾” MNPT

d

Operating temperature:-20oC to 55oC (-4oF to 131oF)

e

Operating humidity:5% RH to 85%RH

f

Minimum detectable limit:0.15ppm•hr at 30 cm/sec face velocity

g

Color change:Green to brown to black

h

Storage temperature:4oC to 25oC, (39oF to 77oF)

i

Shelf life:2 years at 4oC to 25oC, (39oF to 77oF)

j

Service life:2 years
Refill Kit

THE HYDRAZINE BTI INLINE CAN BE REUSED BY REPLACING THE EXHAUSTED HYDRAZINE INDICATOR WITH FRESH HYDRAZINE INDICATOR ASSEMBLY.

The hydrazine BTI Inline Refill Kit Item No.608-5000 Includes:
1- One hydrazine Indicator Assembly (Item No. 608-1600)
2- Two Porous Plugs (Item No. 617-1400)

Miniature-Hook Pick (Item No. 431-9100) Optional

Please call us (1-855-243-6837) or email us
