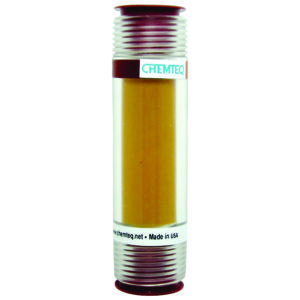

Acid Vapors Breakthrough Indicator Inline
Acid Vapors Indicator
Item No. 602
Product Features
Minimum detectable limit: 4ppm•min

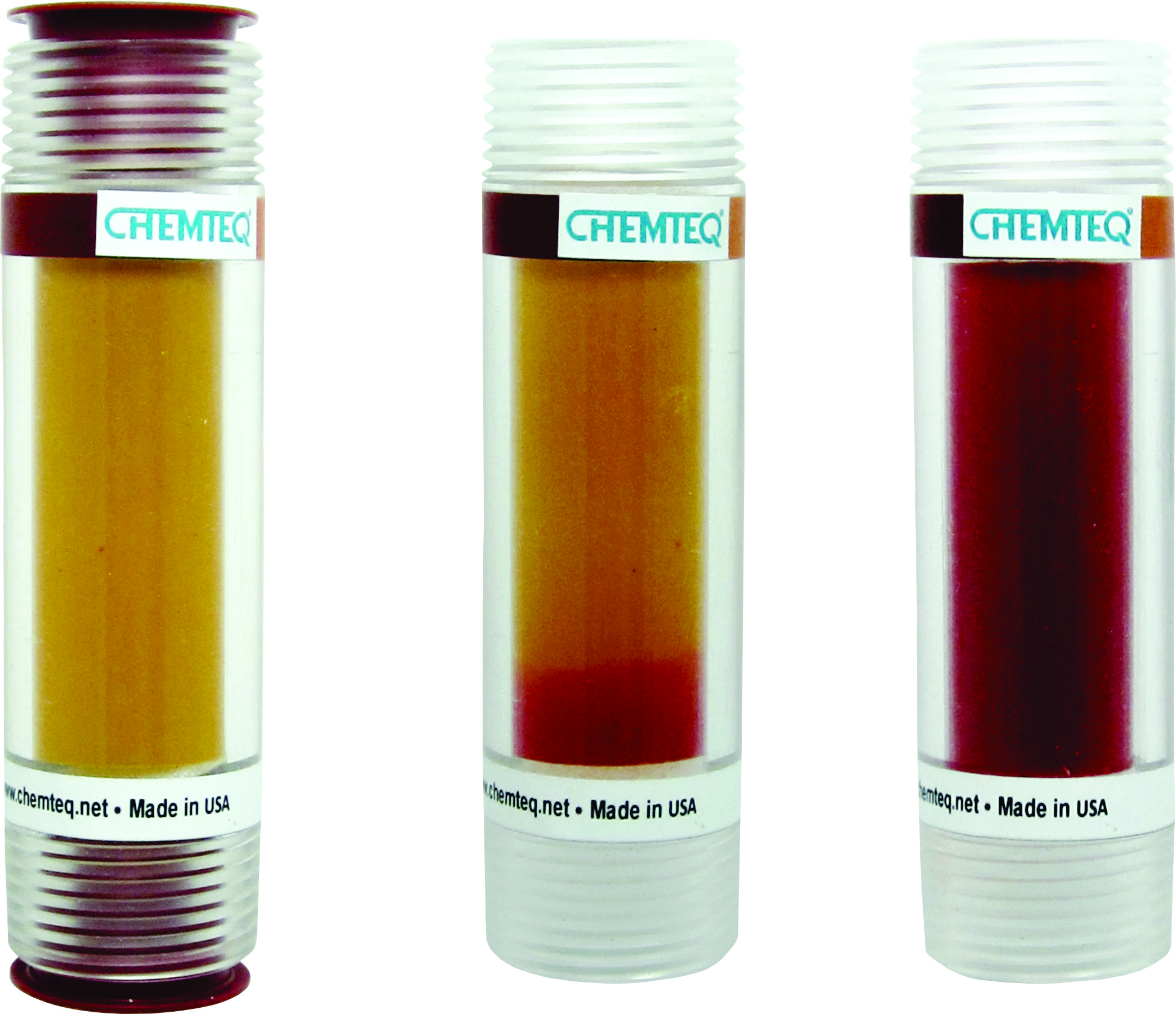

Color Change: Orange to red
Inlet & outlet dimensions: ¾” Male NPT
Service life: 14 months
$77.09
Acid Vapors Breakthrough Indicator-Inline is reliable and cost effect means for protection from exposure to toxic acid gases and vapors. Acid vapors include acetic acid, hydrochloric acid, hydrofluoric acid, hydrogen bromide, hydrogen chloride, hydrogen iodide, nitric acid, nitrous acid, sulfur dioxide, trichloroacetic acid and trifloroacetic acid. Easily connect inline with ¾” male, male NPT inlet and outlet. You can observe the bright vibrant color change from all directions.
PN 602
Product Specifications
a | Weight: | 28g (1.0oz) |
b | Dimensions: | 89.9mm (3.5in), diameter 24.5mm (1.0in) |
c | Inlet and outlet dimensions: | ¾” MNPT |
d | Operating temperature: | -20oC to 55oC (-4oF to 131oF) |
e | Operating humidity: | 5% RH to 85%RH |
f | Minimum detectable limit: | 4ppm•min at 30 cm/sec face velocity |
g | Color change: | orange to red |
h | Storage temperature: | 4oC to 25oC, (39oF to 77oF) |
i | Shelf life: | 14 months at 4oC to 25oC, (39oF to 77oF) |
j | Service life: | 14 months |
Refill Kit
THE ACID VAPORS BTI INLINE CAN BE REUSED BY REPLACING THE EXHAUSTED ACID VAPORS INDICATOR WITH FRESH ACID VAPORS INDICATOR ASSEMBLY.
Acid Vapors BTI Inline Refill Kit Item No.602-5000 Includes:
1- One Acid Vapors Indicator Assembly (Item No. 602-1600)
2- Two Porous Plugs (Item No. 617-1400)
Miniature-Hook Pick (Item No. 431-9100) Optional
