Mercury & Mercury II Compounds Breakthrough Indicator Inline
Indicator for Mercury & Mercury II Compounds
Item No. 612
Product Features
Minimum detectable limit: 0.5mg/m3•hr at 30 cm/sec face velocity
Color Change: Off white to peach
Inlet & outlet dimensions: ¾” Male NPT
Service life: 1 year
$109.11

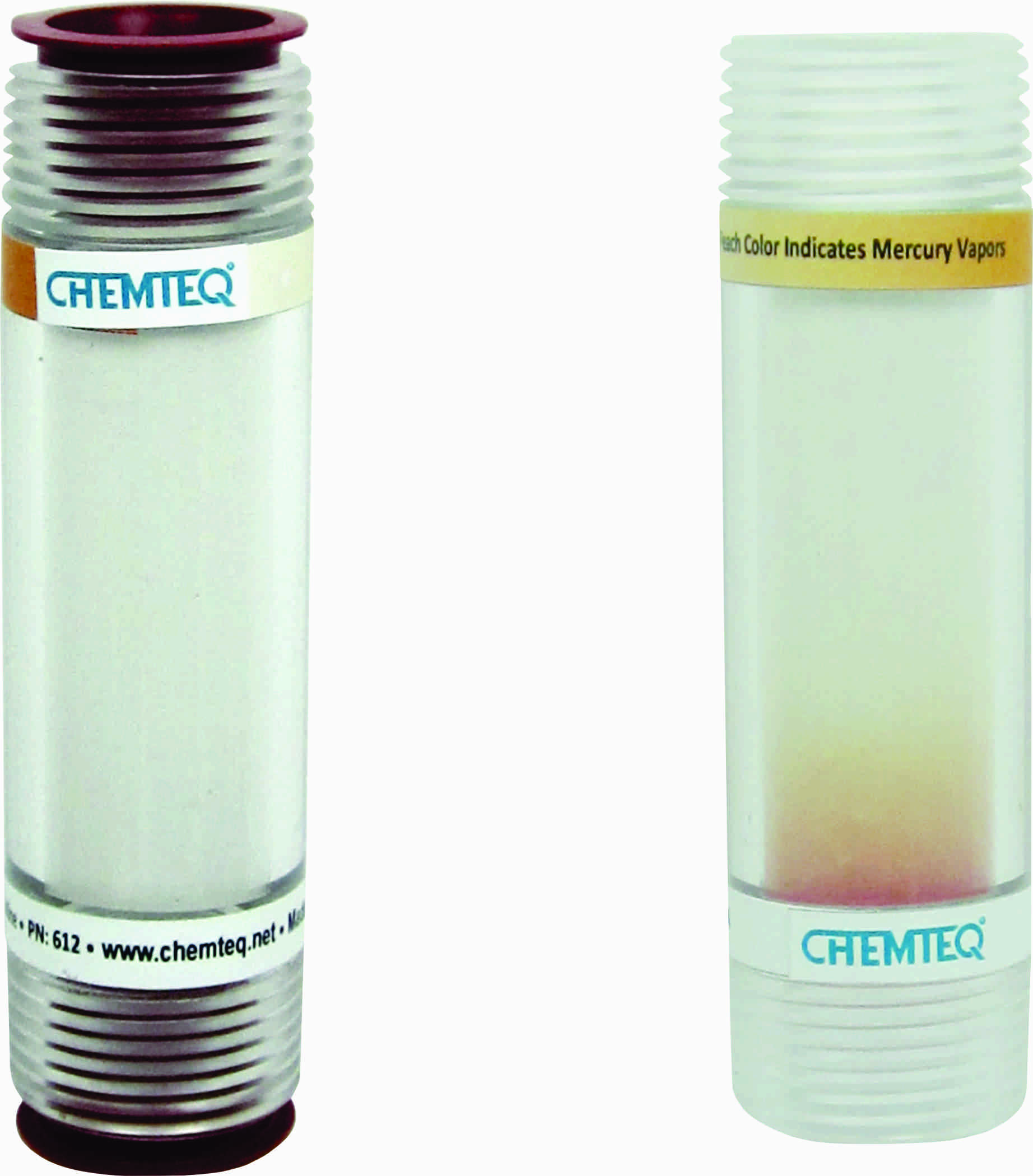

Mercury Breakthrough Indicator Inline is reliable and cost effect means for protection from exposure to toxic mercury. It indicates mercury and mercury II compounds. The indicator is easily connected in-line with ¾” male, male NPT inlet and outlet. You can observe the bright vibrant color change from all directions.
To ensure optimal performance in outdoor environments, the BTI Inline Indicator should be used with the BTI Inline Protective Sleeve, which protects the indicator from sunlight and excessive heat. The protective sleeve is available and sold separately. [View BTI Inline Protective Sleeve]
Product Specifications
|
a |
Weight: | 28g (1.0oz) |
|
b |
Dimensions: |
89.9mm (3.5in), diameter 24.5mm (1.0in) |
|
c |
Inlet and outlet dimensions: |
¾” MNPT |
|
d |
Operating temperature: | -20oC to 55oC (-4oF to 131oF) |
|
e |
Operating humidity: | 5% RH to 85%RH |
|
f |
Minimum detectable limit: | 0.5mg/m3•hr at 30 cm/sec face velocity |
|
g |
Color change: | Off white to peach |
|
h |
Storage temperature: | 4oC to 25oC, (39oF to 77oF) |
|
i |
Shelf life: | 1 year at 4oC to 25oC, (39oF to 77oF) |
|
j |
Service life: | 1 year |
THE MERCURY & MERURY II COMPOUNDS BTI INLINE CAN BE REUSED BY REPLACING THE EXHAUSTED MERCURY INDICATOR WITH FRESH MERCURY INDICATOR ASSEMBLY.
The mercury & mercury II compounds BTI Inline Refill Kit Item No.612-5000 Includes:
1- One mercury & mercury II compounds Indicator Assembly (Item No. 612-1600)
2- Two Porous Plugs (Item No. 617-1400)
Miniature-Hook Pick (Item No. 431-9100) Optional
Please call us (1-855-243-6837) or email us
