Organic Vapors Breakthrough Indicator

Organic Vapors Breakthrough Indicator for Low-Flow Filters (BTI LFF V)

Filter Saturation Indicator- organic vapors

Item No. 152-0000

Product Features:
Minimum detectable limit: See manual
Color Change: Orange to red
Service life: 1 year

(Pack of 5)

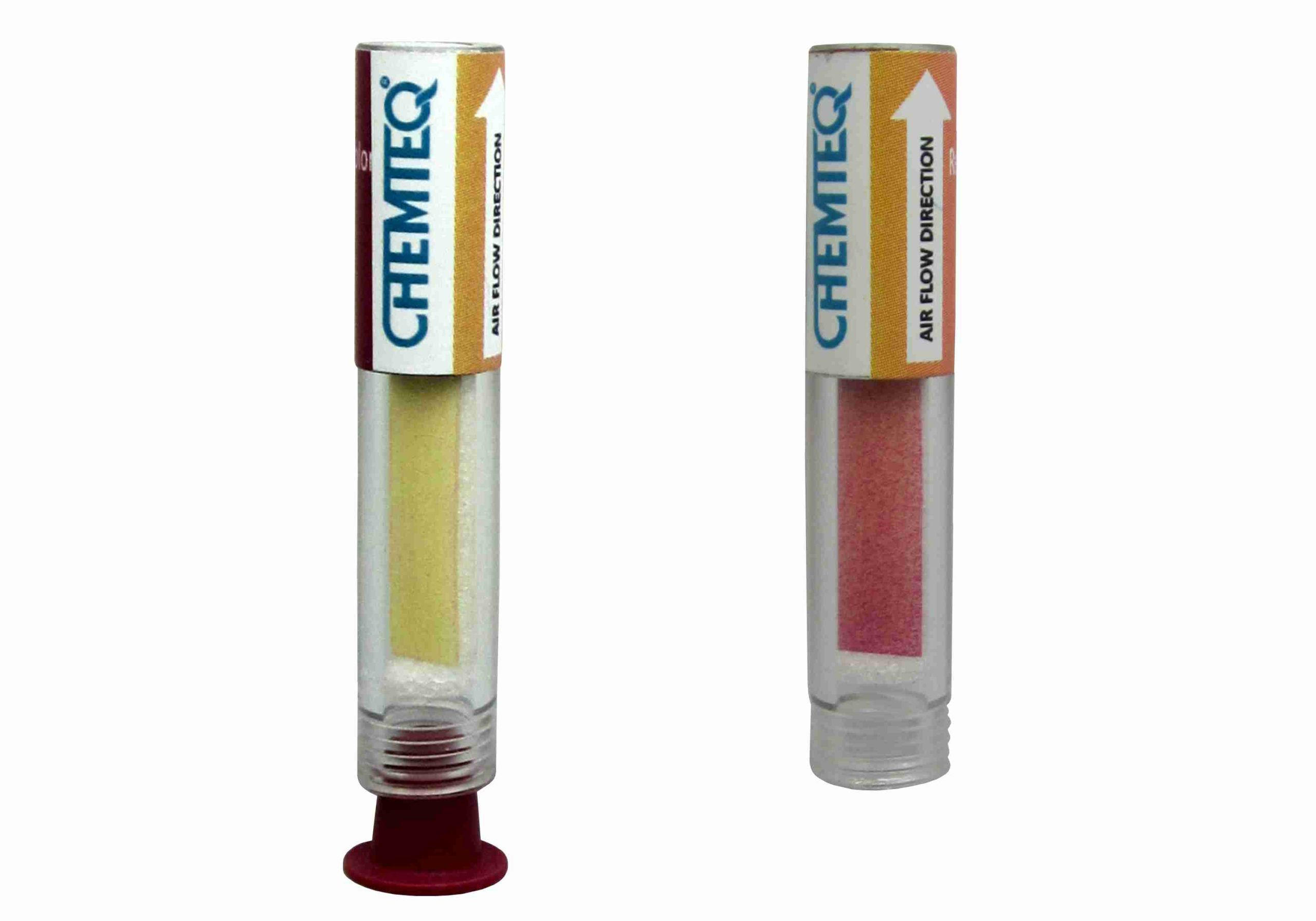

Organic Vapors Filter Breakthrough Indicator Low-Flow-Filters (BTI LFF V) – PN 152-0000

The BTI LFF is a breakthrough indicator for low-flow filters. It indicates the saturation and exhaustion of organic vapors in hplc waste container filters. The indicator is reliable and cost effect means for protection from exposure to toxic organic vapors.


  • Real-time indicator
  • Direct read
  • Respond to wide range of organic solvents
  • Reliable and cost effective

How Does the BTI LFF V Works?
When filter becomes consumed, toxic gases and vapors breakthrough it. The gases and vapors then enter the BTI LFF V and chemically reacts with the indicating sensor producing vivid color change. The sorption media on top of the BTI LFF V traps traces of contaminants from escaping to the outside environment. It also protects the colorimetric indicator from changing color due to exposure to contaminants in the surrounding environment.

Organic Vapors Filter Breakthrough Indicator Low-Flow-Filters V
Useful Links:
NIOSH Pocket Guide to Chemical Hazards

Product Specifications

a Weight: 2.8g (0.1oz)
b Dimensions: 50mm (2.0in), diameter: 9.5mm (0.375in)
c Threading; M10 x 1mm
d Operating temperature: -20oC to 55oC (-4oF to 131oF)
e Operating humidity: 5% RH to 85%RH
f Minimum detectable limit: See manual
g Color change: Orange to  red
h Storage temperature: 4oC to 25oC, (39oF to 77oF)
i Shelf life: 14 months at 4oC to 25oC, (39oF to 77oiF)
j Service life: 1 year
