Hydrogen Sulfide Breakthrough Indicator Inline Waterproof
Hydrogen Sulfide Breakthrough Indicator Inline Waterproof. Indicator of hydrogen sulfide
Item No. 618
Product Features
Minimum detectable limit: 4ppm•min
Color Change: Green to black
Inlet & outlet dimensions: ¾” Male NPT
Service life: 2 years
$87.16

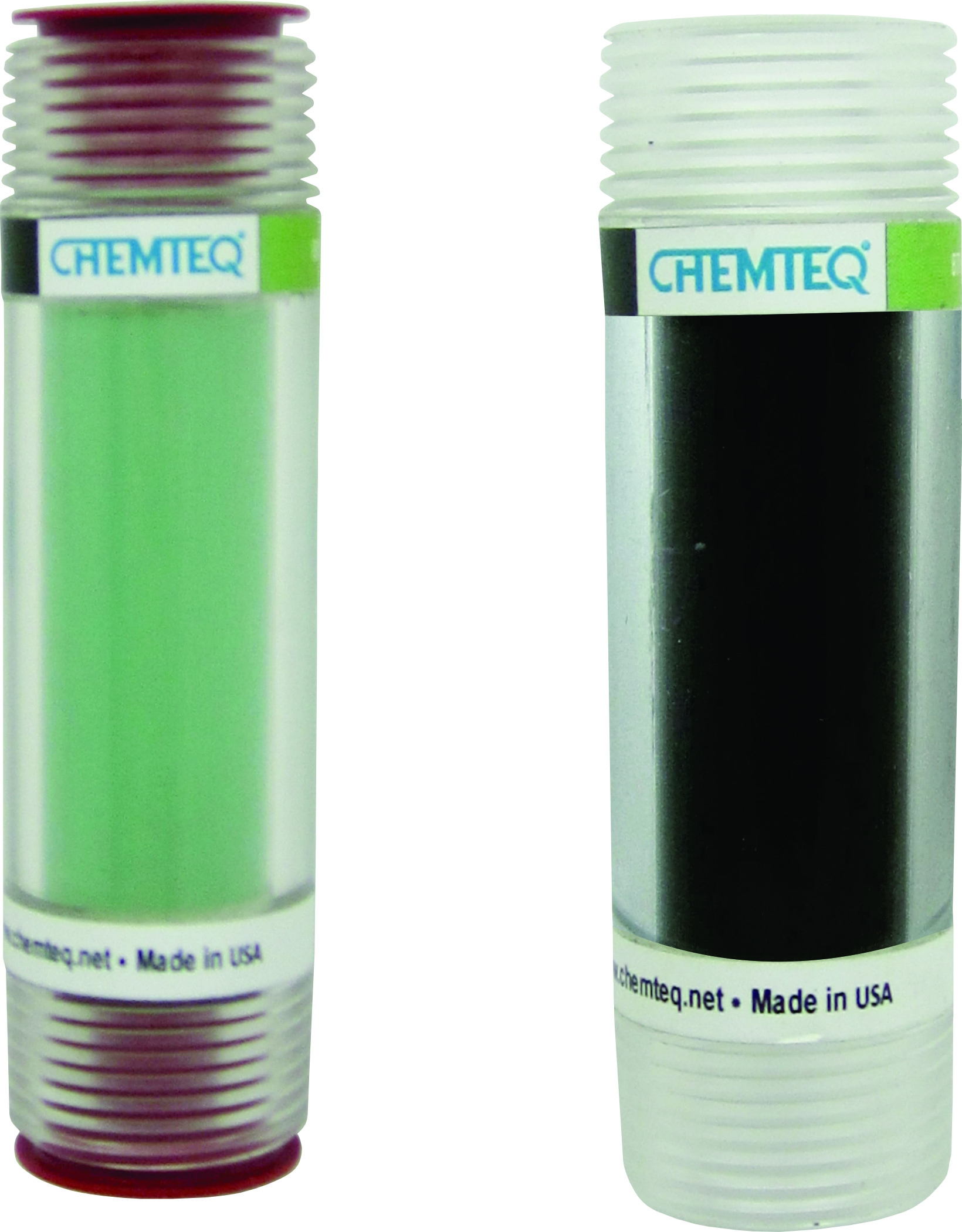

Hydrogen Sulfide Breakthrough Indicator-Inline-Waterproof is reliable and cost effect means for protection from exposure to hydrogen sulfide. The indicator is easily connected in-line with ¾” male, male NPT inlet and outlet. You can observe the bright vibrant color change from all directions. The indicator is waterproof and has extended service life and shelf life.
PN 618
Product Specifications
|
a |
Weight: | 28g (1.0oz) |
|
b |
Dimensions: |
89.9mm (3.5in), diameter 24.5mm (1.0in) |
|
c |
Inlet and outlet dimensions: |
¾” MNPT |
|
d |
Operating temperature: | -20oC to 55oC (-4oF to 131oF) |
|
e |
Operating humidity: | 5% RH to 85%RH |
|
f |
Minimum detectable limit: | 4ppm•min at 30 cm/sec face velocity |
|
g |
Color change: | Green to black |
|
h |
Storage temperature: | 4oC to 25oC, (39oF to 77oF) |
|
i |
Shelf life: | 2 years at 4oC to 25oC, (39oF to 77oF) |
|
j |
Service life: | 2 years |
Refill Kit
THE HYDROGEN SULFIDE BTI INLINE CAN BE REUSED BY REPLACING THE EXHAUSTED HYDROGEN SULFIDE INDICATOR WITH FRESH HYDROGEN SULFIDE INDICATOR ASSEMBLY.
The hydrogen sulfide BTI Inline Refill Kit Item No.618-5000 Includes:
1- One hydrogen sulfide Indicator Assembly (Item No. 618-1600)
2- Two Porous Plugs (Item No. 617-1400)
Miniature-Hook Pick (Item No. 431-9100) Optional
Please call us (1-855-243-6837) or email us
