Acids Filter with end of service life indicator for chemical processes and reactor vents. Real time and reliable

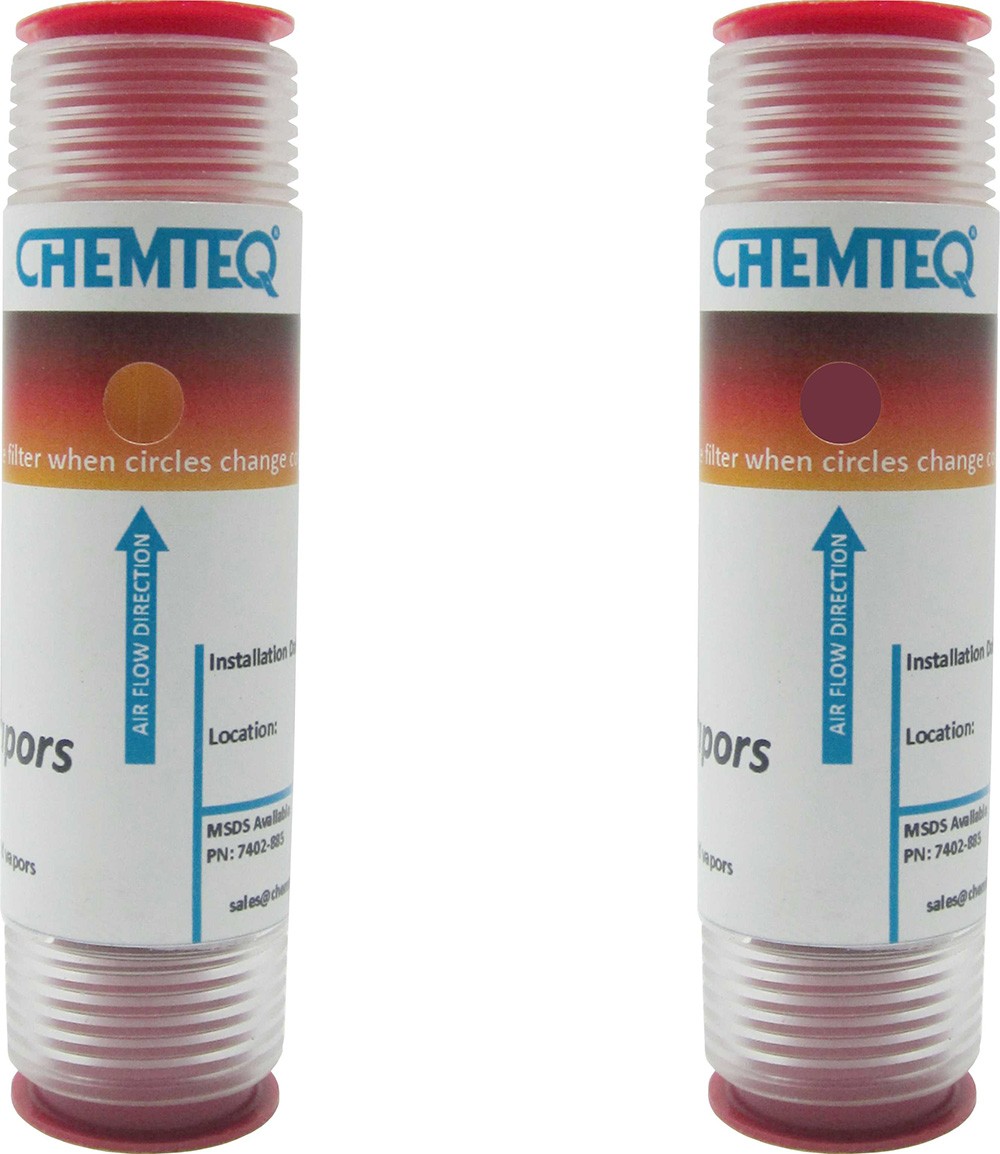

Acids DG Filter with End-of-Service Life Indicator (ESLI)

Acids Filter with End of Service Life Indicator

Item No. 7402

Dimensions: Length = 89.9mm (3.5”), diameter = 24.5mm (1”), Inlet & outlet = ¾” Male NP

$100.83

Acids Filter with ESLI – PN 7402
The Acids DG Filters with end-of-service life indicator (ESLI) is an efficient and reliable filter most suited for chemical processes and reactor vents. The ESLI allows user to safely use filter without the possibility of toxic gases and vapors breakthrough to the surrounding environment. The ESLI changes color when the filter is about 75% to 80% consumed, allowing 20 to 25% of sorption media as safety buffer.

Filter Specifications:
Filter with End-of-Services Life Indicator (ESLI)
Length = 3.5”, diameter = 1”, Inlet & outlet = ¾” female NPT
Up to 15g. of special blends sorption media
Suitable for Chemical Processes and Reactors Vents

Filter & ESLI Specifications:

a Weight: 34g (1.6oz)
b Dimensions: 89.9mm (3.5in), diameter 24.5mm (1.0in)
c Inlet & outlet dimensions: ¾” MNPT
d Operating temperature: -20oC to 40oC (-4oF to 104oF)
e Operating humidity: 5% RH to 85%RH
f Minimum detectable limit: 1ppm●min
g Color change: Orange to red
h Storage temperature: 4oC to 25oC, (39oF to 77oF)
i Shelf life: 1 year at 4oC to 25oC, (39oF to 77oF)
Service life: 14 months

Acids Filter with ESLI
