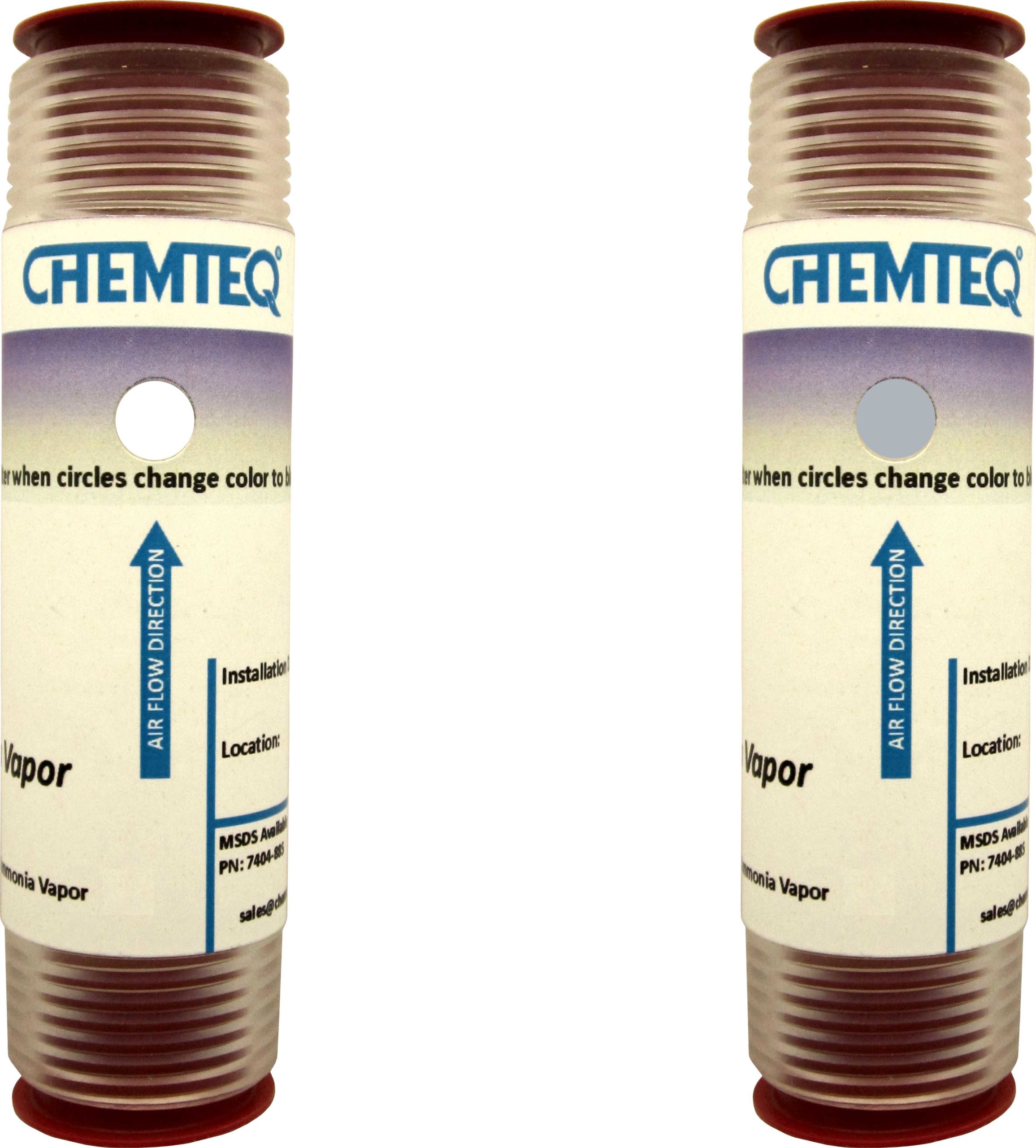

Ammonia DG Filter with End-of-Service Life Indicator (ESLI)
Ammonia Filter with end of service life indicator
Item No. 7404
Dimensions: Length = 89.9mm (3.5”), diameter = 24.5mm (1”), Inlet & outlet = ¾” Male NP
$100.83
Ammonia DG Filter ESLI – PN 7404
The DG Filter with end-of-service life indicator (ESLI) is an efficient and reliable filter most suited for chemical processes and reactor vents. The ESLI allows the user to safely use filter without the possibility of toxic gases and vapors breakthrough to the surrounding environment. The ESLI changes color when the filter is about 75% to 80% consumed, allowing 20 to 25% of sorption media as safety buffer.
Filter Specifications:
Filter with End-of-Services Life Indicator (ESLI)
Length = 3.5”, diameter = 1”, Inlet & outlet = ¾” female NPT
Up to 15g. of special blends sorption media
Suitable for Chemical Processes and Reactors Vents
Filter & ESLI Specifications:
| a | Weight: | 34g (1.6oz) |
| b | Dimensions: | 89.9mm (3.5in), diameter 24.5mm (1.0in) |
| c | Inlet & outlet dimensions: | ¾” MNPT |
| d | Optimum allowable flow reta | Static to 5cc/min |
| e | Operating temperature: | -20oC to 40oC (-4oF to 104oF) |
| f | Operating humidity: | 5% RH to 85%RH |
| g | Minimum detectable limit: | 10ppm●hr |
| h | Color change: | light blue to dark blue |
| i | Storage temperature: | 4oC to 25oC, (39oF to 77oF) |
| j | Shelf life: | 2 years at 4oC to 25oC, (39oF to 77oF) |
| k | Service life: | 2 years |
Ammonia Filter ESLI
