Selected Organic Solvents Breakthrough Indicator Sticker for Low Flow Filters (BTIS LFF)
Selected Organic Solvents Filter Change Indicator Sticker for hplc waste container filters
Item No. 113
Dimensions: Diameter = 19.1mm (0.75”), Height = 2.0mm (0.11”)
(Pack of 5)
Selected Organic Solvents Breakthrough-Indicator Sticker BTIS LFF is filter change indicator sticker for hplc waste container filters. Use with low flow filters with open pores filter outlet plug. This indicator detects wide range of selected organic vapors. Please refer to manual for specific chemical.
How the BTIS LFF works?
When filter is consumed, toxic gases and vapors breakthrough it. The contaminated air then contacts the BTIS LFF and chemically reacts with the indicating sensor. Producing vivid color change, alerting the user to change the filter.
How to use the BTIS LFF?
- Remove adhesive protective liner from the front of sticker.
- Attach to center clean area on the outlet of the filter.
- Replace filter when the BTIS LFF changes Color.
why is it essential to use filter change indicator & how to install it into your filter →
|Dimensions:||1.5mm (0.06in), diameter 19mm (0.75in)|
|Operating temperature:||4oC to 40oC (39oF to 104oF)|
|5% RH to 85%RH|
|Minimum detectable limit and limitations:||See attached document|

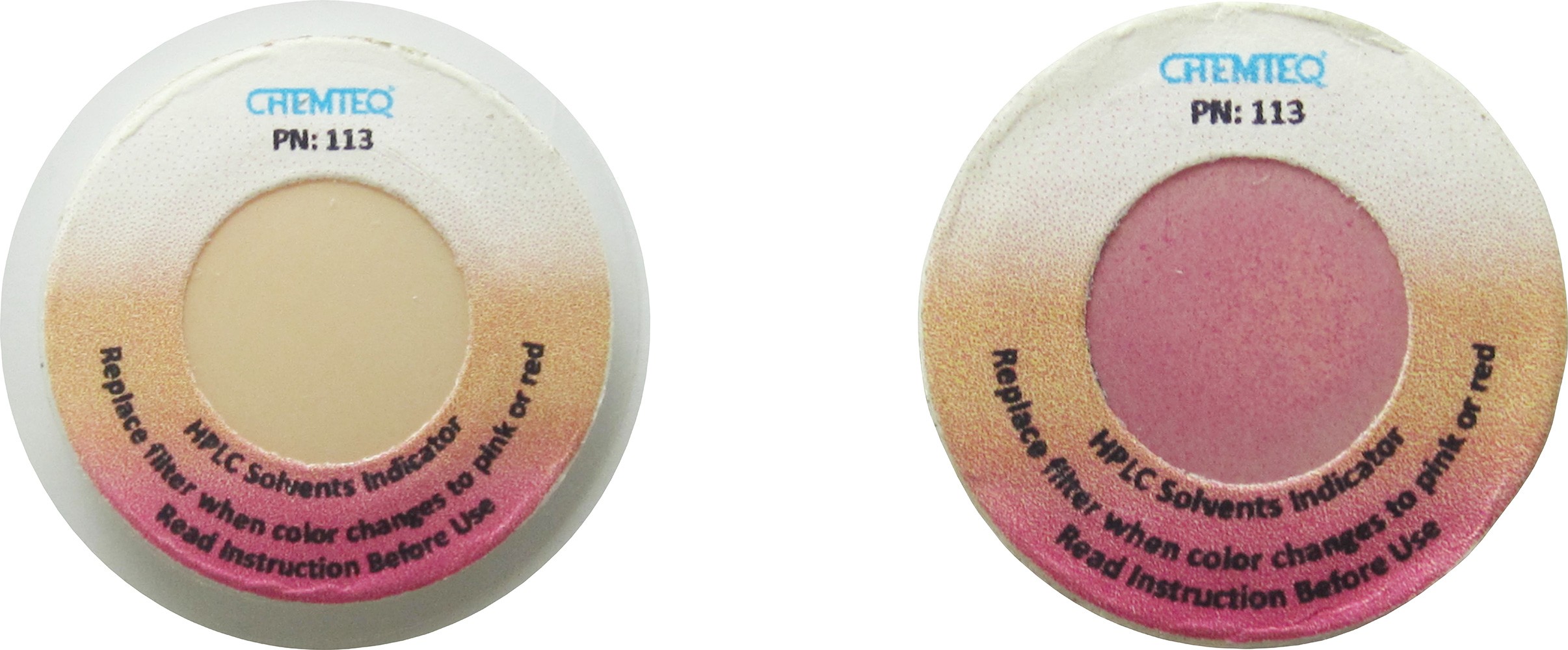

|Color change:||Orange to red|
|Storage temperature:||4oC to 25oC, (39oF to 77oF)|
|Shelf life:||14 months at 4oC to 25oC, (39oF to 77oF)|
|Service life:||12 months|
|Maximum shipping temperature:||45oC (113oF)|
