Pyridine and Basic Vapors Filter Breakthrough Indicator

Pyridine and Basic Vapors Breakthrough Indicator for Low-Flow Filters (BTI LFF V)

Filter Saturation Indicator-pyridine -basic-organic-vapors

Item No. 1109

Product Features
Minimum detectable limit: 1ppm•hr at 30 cm/sec face velocity
Color Change: Yellow to green or blue
Service life: 1 year

(Pack of 5)

$194.27

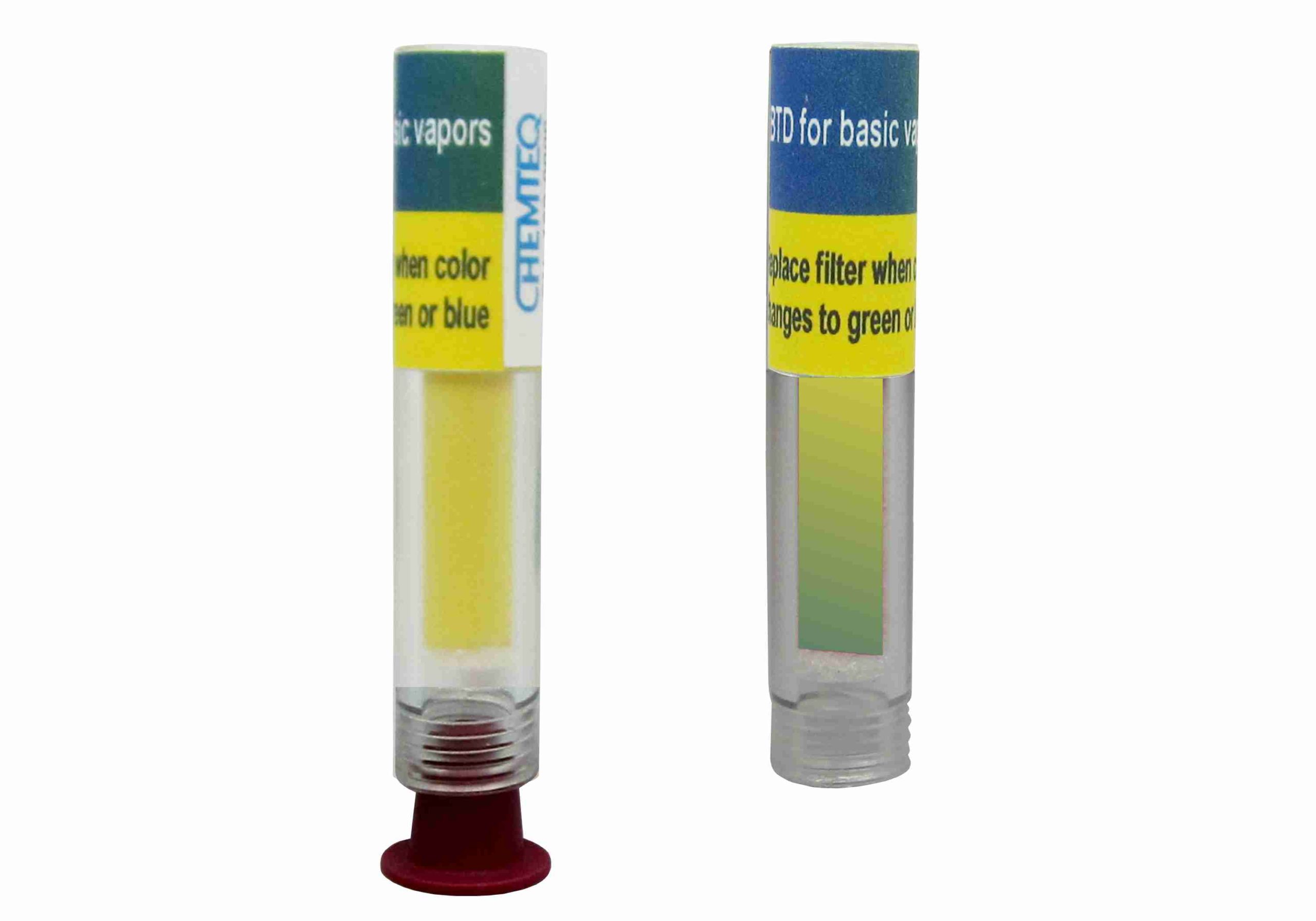

Pyridine Breakthrough Indicator for low-flow filters (BTI LFF V) is a colorimetric indicator that indicates the saturation and exhaustion of hplc waste container filters. The indicator is reliable and cost effect means for protection from exposure to pyridine and basic organic vapors. The indicator change color from orange to green or blue when filters are saturated with pyridine or basic organic vapors.

Acidic vapors in high concentrations impair the performance of the basic vapors breakthrough indicator. You can easily attach the indicator into filter outlet (closed pores foam adapter is required; please contact us for details). The BTI LFF V operates at temperatures 4oC to 32oC (39oF to 89.6oF) and humidities 5% RH to 85%RH. The indicator is 3.0 inch tall; 3/8” inch diameter and you can observe the bright vibrant color change from all directions. The unique design of the indicator prevents any color change due to exposure to contaminants in the surrounding environment. It changes color only when filter is saturated. The indicator has extended service life of 1 year plus 14 months shelf life.

Pyridine Breakthrough Indicator – PN 1109

Product Specifications

a Weight: 2.8g (0.1oz)
b Dimensions: 50mm (2.0in), diameter: 9.5mm (0.375in)
c Threading; M10 x 1mm
d Operating temperature: -20oC to 55oC (-4oF to 131oF)
e Operating humidity: 5% RH to 85%RH
f Minimum detectable limit: 1ppm•hr at 30 cm/sec face velocity
g Color change: Yellow to green or blue
h Storage temperature: 4oC to 25oC, (39oF to 77oF)
i Shelf life: 14 months at 4oC to 25oC, (39oF to 77oiF)
j Service life: 1 year
