Nitrogen Dioxide DG FILTER-756. Most suited for reactor vents. Special blend sorbent media. For best results, use with BTI or BTI2.

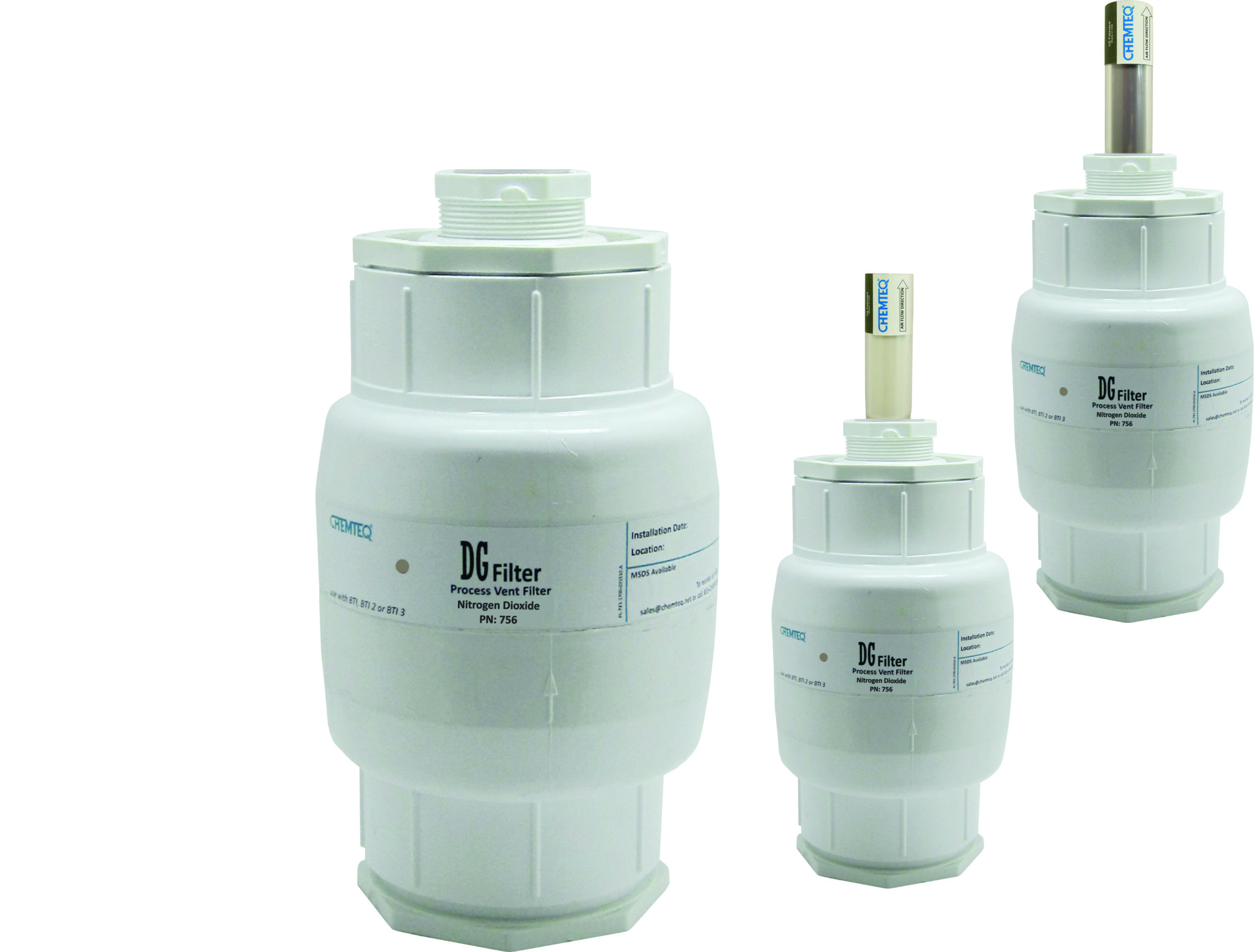

Nitrogen Dioxide DG FILTER-756

Filter for Chemical Processes and Reactors Vents

Item No. 756

Nitrogen Dioxide DG Filter 756

Dimensions:

Length = 16”, diameter = 9.4”, Inlet & outlet = ¾” to 2.5” female NPT

Description:

Up to 5 lb. of special blends sorption media
Easy refilling of consumed sorption media
Optional use of filter change indicators nitrogen dioxide BTI (PN: 178) or nitrogen dioxide BTI 2 (PN: 419) depending on the selected filter outlet. Sold separately.

$531.98

Nitrogen Dioxide DG FILTER-756 is an efficient and reliable filter.  Most suited for chemical processes and reactor vents. Special blend sorbent media for maximum sorption of acid gases and vapors. Easy refilling of consumed sorption media. For best results, use with corresponding filter change indicators, BTI or BTI2.  Filter change indicator alters user in real time to replace filter. BTI and BTI2 are sold separate.

Filter Specifications:

ALength:11”
bDiameter:5.7”
cOperating temperature:-20oC to 55oC (-4oF to 131oF)
dOperating humidity:5% RH to 85%RH
eInlet and outlet:0.75” or 1.5” female NPT*
fSorption media:Up to 5 lb.
gAllowable fluid:Gases and vapors
hOptimum air flow:Static to 500cc/min
iRecommendationUse filter with BTI (3.5”x 1”, 0.75” NPT) or BTI2 (4.5”x 2”, 1.5” NPT). sold separately

* NPT = National pipe thread

Suitable for Chemical Processes and Reactors Vents
Easy refilling of consumed sorption media
