Nitrogen Dioxide Breakthrough Indicator-Inline
Nitrogen dioxide Breakthrough Indicator Inline. Indicator for nitrogen dioxide
Item No. 620
Product Features
Minimum detectable limit: 0.5ppm•hr
Color Change: Off white to gray
Inlet & outlet dimensions: ¾” Male NPT
Service life: 14 months
$77.09

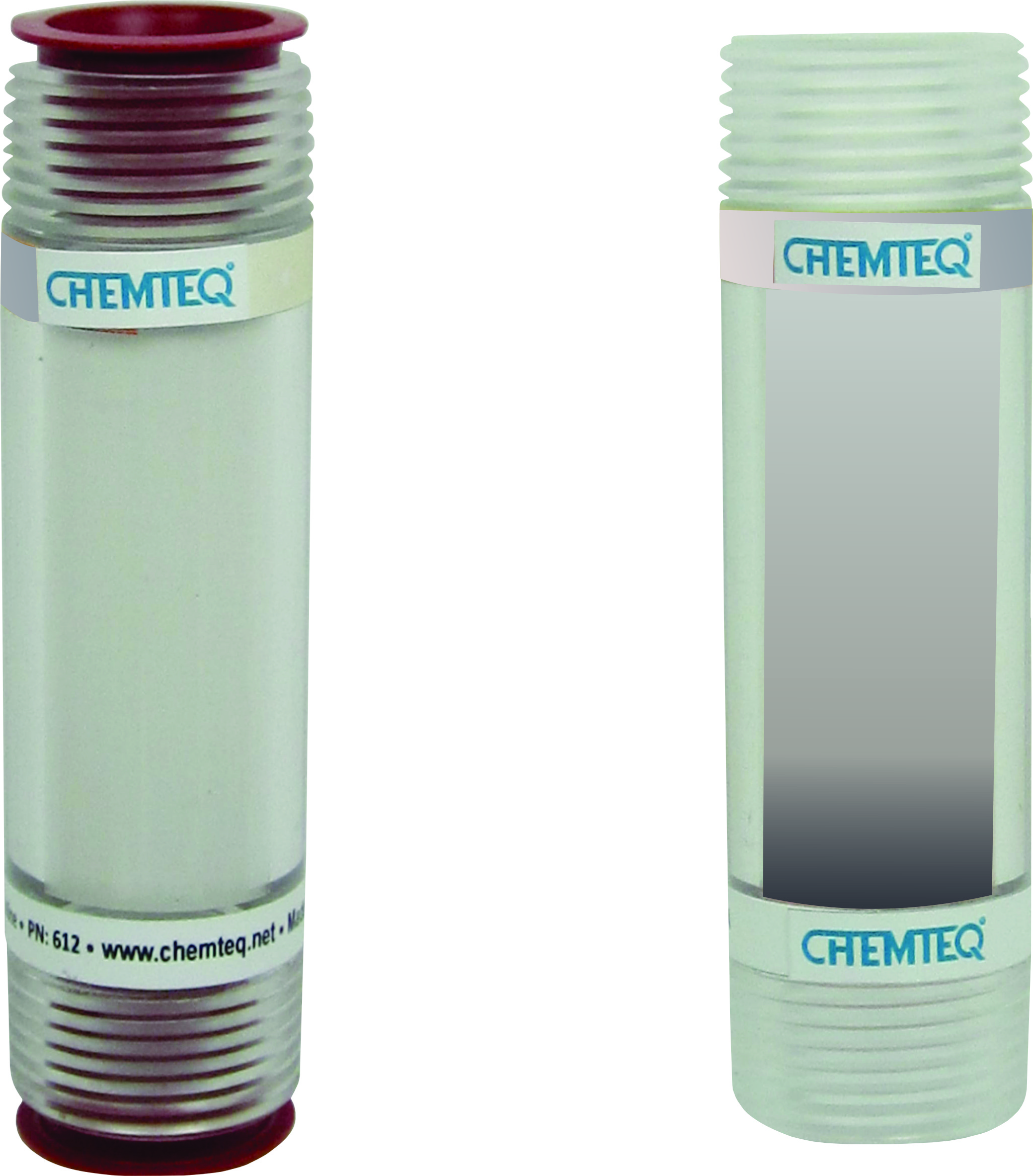

Nitrogen Dioxide Breakthrough Indicator-Inline. Reliable and cost effect means for protection from exposure to nitrogen dioxide gases. Easily connected in-line with ¾” male, male NPT inlet and outlet. You can observe the bright vibrant color change from all directions.
PN 620
Product Specifications
|
a |
Weight: | 28g (1.0oz) |
|
b |
Dimensions: |
89.9mm (3.5in), diameter 24.5mm (1.0in) |
|
c |
Inlet and outlet dimensions: |
¾” MNPT |
|
d |
Operating temperature: | -20oC to 55oC (-4oF to 131oF) |
|
e |
Operating humidity: | 5% RH to 85%RH |
|
f |
Minimum detectable limit: | 0.5ppm•hr at 30 cm/sec face velocity |
|
g |
Color change: | Off white to gray |
|
h |
Storage temperature: | 4oC to 25oC, (39oF to 77oF) |
|
i |
Shelf life: | 14 months at 4oC to 25oC, (39oF to 77oF) |
|
j |
Service life: | 14 months |
Refill Kit
THE NITROGEN DIOXIDE BTI INLINE CAN BE REUSED BY REPLACING THE EXHAUSTED NITROGEN DIOXIDE INDICATOR WITH FRESH NITROGEN DIOXIDE INDICATOR ASSEMBLY.
The Nitrogen Dioxide BTI Inline Refill Kit Item No.620-5000 Includes:
1- One nitrogen dioxide Indicator Assembly (Item No. 620-1600)
2- Two Porous Plugs (Item No. 617-1400)
Miniature-Hook Pick (Item No. 431-9100) Optional
