Aromatic Diisocyanates DG FILTER-ESLI-2712. Aromatic Diisocyanates filter with end-of-service life indicator suitable Chemical Processes

Aromatic Diisocyanates DG Filter with end of service life indicator 2712

Aromatic Diisocyanates Filters with End-of-Services Life Indicator

Item No. 2712

Filter Dimensions: 28 cm (18”) x 16.5 cm (7.6”)
Weight: 12.3 kg (27 lb.)
Sorption Media Weight: 〜 4.5 kg (10 lb.)
Fluids Allowed: Gases and Vapors
Air flow: Static to 800 cc/min

$1,448.39

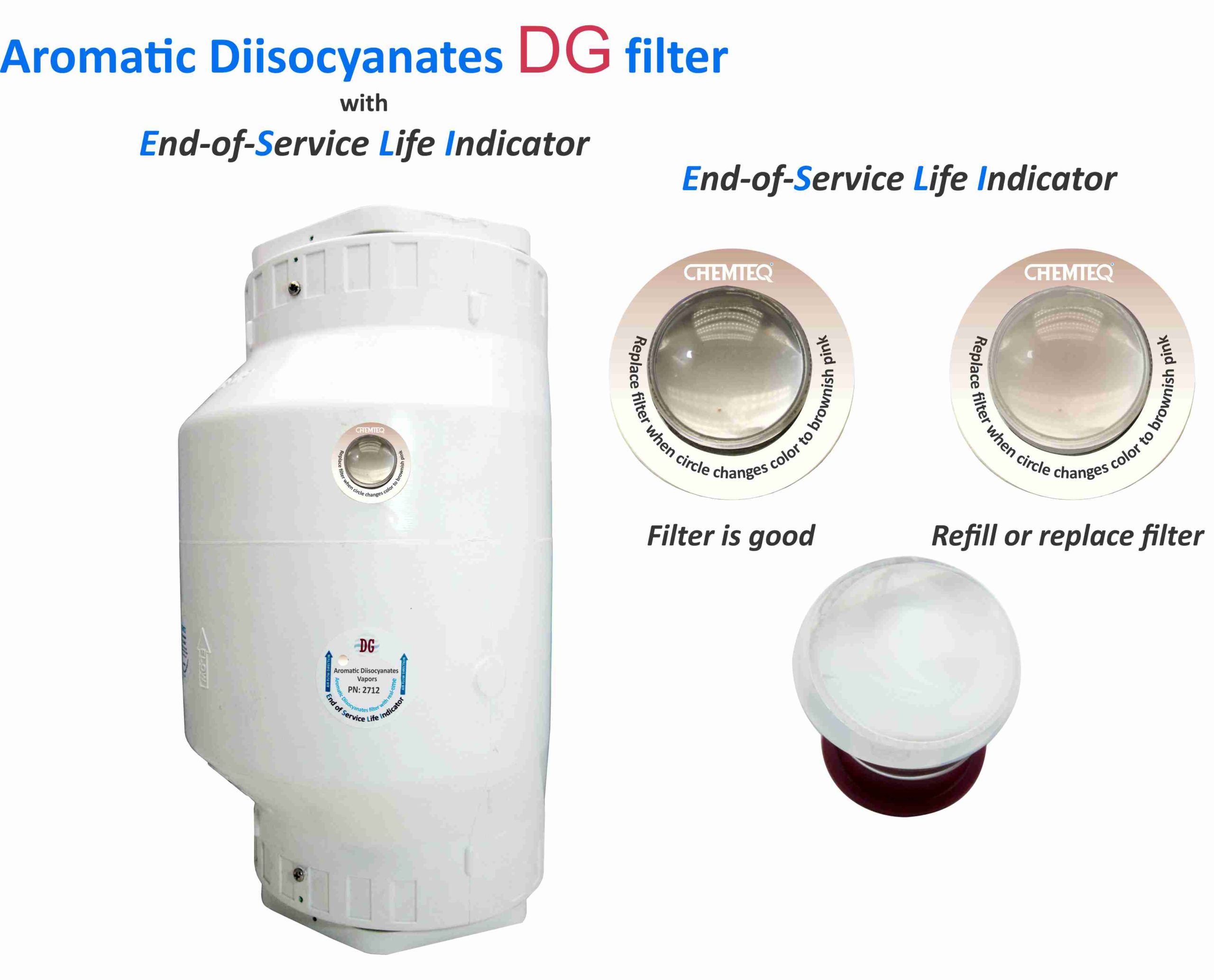

Aromatic Diisocyanates DG FILTER-ESLI-2712
The DG Filters with end-of-service life indicators (ESLI) are efficient and reliable filters most suited for chemical processes and reactor vents. They are easy to refill and to replace the ESLI. The ESLI allows the user to safely use filter without the possibility of toxic gases and vapors breakthrough to the surrounding environment. The ESLI changes color when the filter is about 75% to 80% consumed, allowing 20 to 25% of sorption media as safety buffer.

Filter Specifications:
Length = 16”, diameter = 7.6”, Inlet & outlet = 2” female NPT
Up to 10 lb. of special blends sorption media

Suitable for Chemical Processes and Reactors Vents
Easy refilling of consumed sorption media
Easy replacement of consumed ESLI

ESLI Specifications:

a Weight: 5g (0.18oz)
b Dimensions: 21.6mm (0.85in), diameter: 25mm (1in)
c Operating temperature: -20oC to 55oC (-4oF to 131oF)
d Operating humidity: 5% RH to 85%RH
e Minimum detectable limit: 4ppb•hr at 30 cm/sec face velocity
f Color change: Off white to pink or brown
g Storage temperature: 4oC to 25oC, (39oF to 77oF)
h Shelf life: 1 year at 4oC to 25oC, (39oF to 77oF)
i Threading: 0.75”-20 UNEF-2A male *

* UNEF = Unified National Imperial Screw Thread

Aromatic Diisocyanates DG FILTER-ESLI-2712
