Ammonia Breakthrough Indicator Sticker Type B (BTIS B)
Ammonia leak detector for chemicals transport vehicles
Item No. 251
Dimensions: Diameter = 38.1mm (1.5in), Height = 2.0mm (0.11in)
(Pack of 5)
$101.50
Ammonia Breakthrough-Indicator Sticker-B (BTIS B) – PN 251. Is a leak detector for use in chemicals transport vehicles and chemical storage cabinets. Suitable locations are the inside of glass window of chemical transport vehicle, or the inside glass window of chemical storage cabinet where representative samples can be obtained. Reliable and cost effective. Operates under extreme conditions and has extended service life.
How to use the BTIS B?
- Remove adhesive protective liner from the front of sticker.
- Attach to center clean area of the inside glass window of chemicals transport vehicle or chemical storage cabinet with the reading area (glossy surface) of the sticker facing inside glass window.

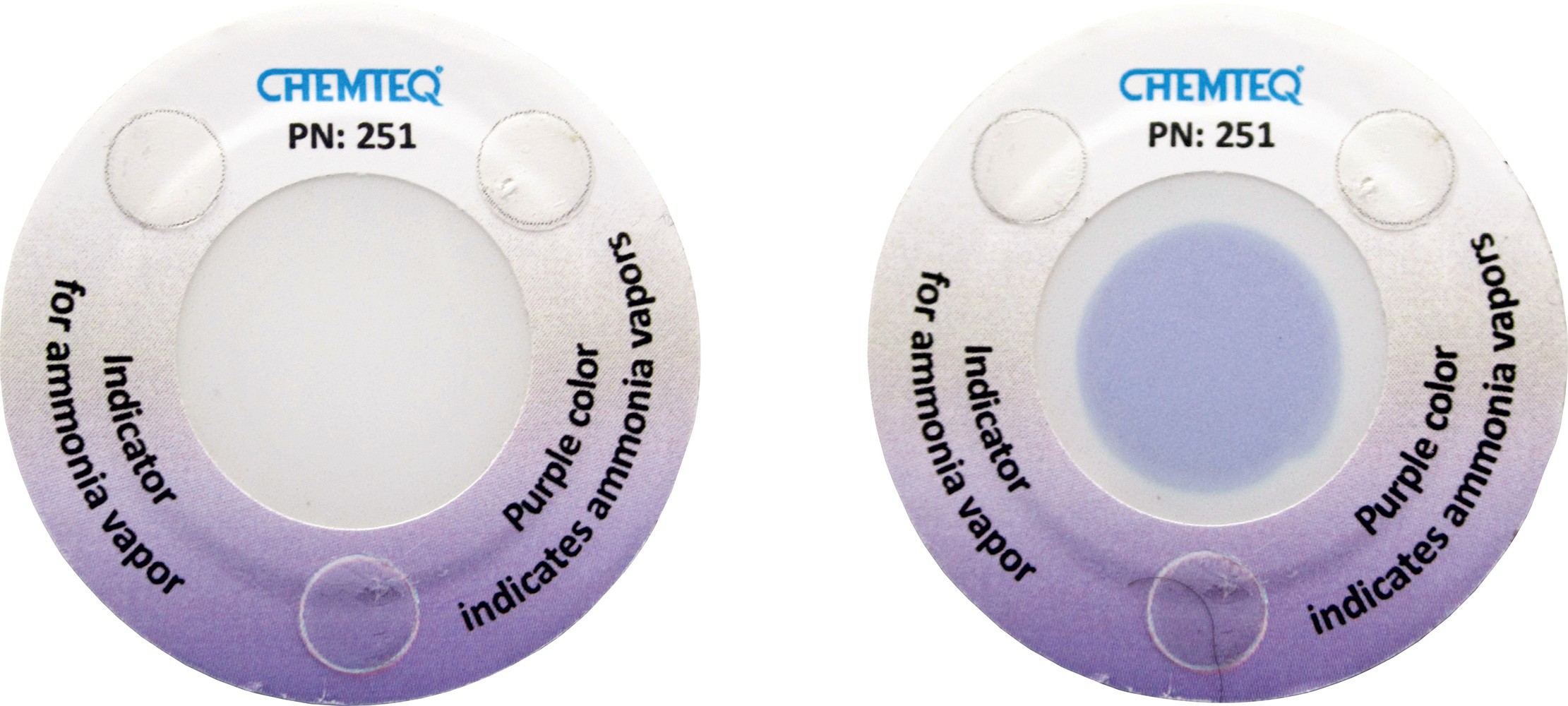

- Color change indicates leak.
Product Specifications
| a | Weight: | 0.4g (0.02oz) |
| b | Dimensions: | 2.8mm (0.11in), diameter: 38.1mm (1.5in) |
| c | Operating temperature: | -20oC to 65oC (-4oF to 149oF) |
| d | Operating humidity: | 5% RH to 90%RH |
| e | Minimum detectable limit: | 10ppm•hr at 30 cm/sec face velocity |
| f | Color change: | Light blue to blue or purple |
| g | Storage temperature: | 4oC to 25oC, (39oF to 77oF) |
| h | Shelf life: | 2 years at 4oC to 25oC, (39oF to 77oF) |
| i | Service life: | 4 months |
