Aromatic Diisocyanates DG FILTER-730
Filters for Chemical Processes and Reactors Vents
Item No. 730

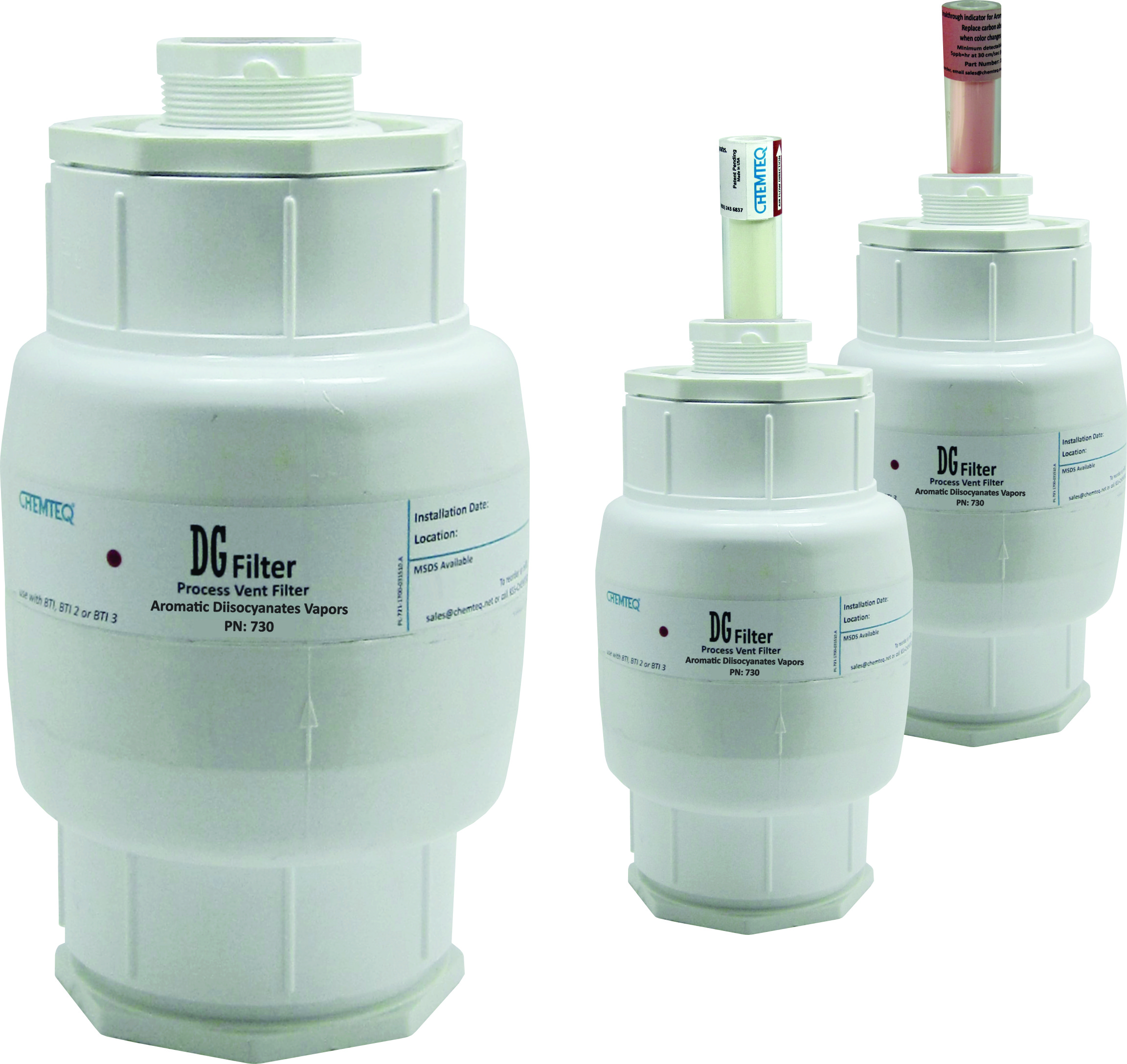

Aromatic Diisocyanates DG Filter 730
Dimensions:
Length = 20”, diameter = 7”, Inlet & outlet = ¾” to 2.5” female NPT
Description:
Up to 5 lb. of special blends sorption media
Easy refilling of consumed sorption media
Optional use of filter change indicators aromatic diisocyanates BTI (PN: 182) or aromatic diisocyanates BTI 2 (PN: 405) depending on the selected filter outlet
$571.98
Aromatic Diisocyanates DG FILTER-730 is an efficient and reliable filter. Most suited for chemical processes and reactor vents. Special blend sorbent media for maximum sorption of acid gases and vapors. Easy refilling of consumed sorption media. For best results, use with corresponding filter change indicators, BTI or BTI2. Filter change indicator alters user in real time to replace filter. BTI and BTI2 are sold separate.
Filter for 2,4-TDI, 2,6-TDI and MDI.
Filter Specifications:
| A | Length: | 11” |
| b | Diameter: | 5.7” |
| c | Operating temperature: | -20oC to 55oC (-4oF to 131oF) |
| d | Operating humidity: | 5% RH to 85%RH |
| e | Inlet and outlet: | 0.75” or 1.5” female NPT* |
| f | Sorption media: | Up to 5 lb. |
| g | Allowable fluid: | Gases and vapors |
| h | Optimum air flow: | Static to 500cc/min |
| i | Recommendation | Use filter with BTI (3.5”x 1”, 0.75” NPT) or BTI2 (4.5”x 2”, 1.5” NPT). sold separately |
* NPT = National pipe thread
Suitable for Chemical Processes and Reactors Vents
Easy refilling of consumed sorption media
Aromatic Diisocyanates DG FILTER-730
